Cruise description

This cruise was a success from beginning to end, despite a few patches of rough weather. All stations were visited, all casts performed, and the mooring work was completed without any mishaps.
We deployed an Argo float for the University of Washington (UW), and we managed to recover another UW float that had been deployed in February 2012 but wasn't functioning anymore. We also deployed two MetOcean floats for DFO/Institute of Ocean Sciences as well as three weather data drifting buoys for Environment Canada.
The regular sampling done during this cruise was completed using a CTD, a Rosette, and a Bongo. Two 250-m bongo casts were done at each major station - one for DFO/IOS and one for the University of Rhode Island. We also used a Multiple Plankton Sampler (MPS) to collect zooplankton to 2000 dbar at 4 stations (1250 dbar at P4). Finally the Trace Metal sampling was done using a clean pump and University of Victoria's Go-flo bottles.
For further details see 2012-12_cruise_report.pdf in the Documents section.

Cruise personnel

Chief Scientist: Marie Robert    Institute of Ocean Sciences  (DFO)
  • Michael Arychuk (Institute of Ocean Sciences-DFO)
  • Michael Bentley (Canadian Wildlife Service)
  • Seth Bushinsky (University of Washington)
  • Michael Craig (NOAA/PMEL)
  • Desirée Dillman (University of Victoria)
  • Aria Hahn (University of British Columbia)
  • Dave Janssen (University of Victoria)
  • Jennifer Keene (NOAA/PMEL)
  • Roger P. Kelly (University of Rhode Island)
  • Brendan Mackinson (University of Rhode Island)
  • Hugh Maclean (Institute of Ocean Sciences-DFO)
  • Wendy Richardson (Institute of Ocean Sciences-DFO)
  • Christina Schallenberg (University of Victoria)
  • Nina Schuback (University of British Columbia)
  • Kyle Simpson (Institute of Ocean Sciences-DFO)
  • Doug Yelland (Institute of Ocean Sciences-DFO)


  • Captain: Mike Corfield

Top of page

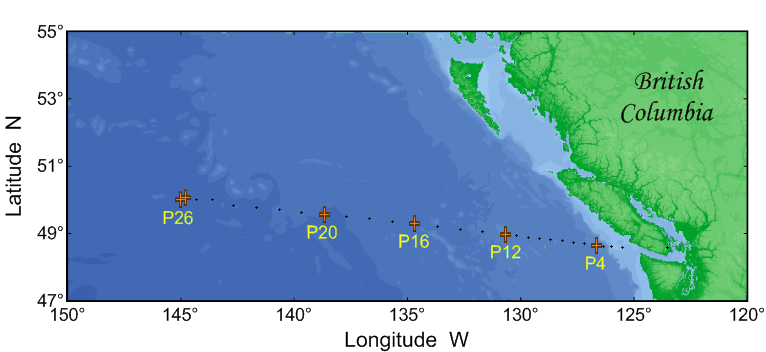

Map of cruise track and stations

Map of Line-P stations for 2012-12

Click on the cast types below to see at which stations the casts were done. To access data.

Top of page

Table of stations and sampling done

Event Station Position Date (UTC)
Time (UTC)
Sampling
1 SI03 48°35.57
123°30.08
23-May-12
22:50
Rosette to 215 dbar
(Ctd data)
2 P1 48°34.55
125°30.05
24-May-12
12:59
Rosette to 32 dbar
(Ctd data to 107 dbar)
3 P2 48°35.99
125°59.98
24-May-12
15:22
Rosette (Deep cast) to 106 dbar
(Ctd data)
4 P2 48°36.01
126°00.02
24-May-12
16:08
Bongo tow to 105 m
5 P2 48°36.01
126°00.04
24-May-12
16:19
Rosette (DMS cast) to 101 dbar
(Ctd data)
6 P3 48°37.51
126°19.96
24-May-12
18:17
Rosette to 41 dbar
(Ctd data to 803 dbar)
7 P4 48°38.96
126°39.96
24-May-12
20:52
Rosette (DMS cast) to 301 dbar
(Ctd data)
8 P4 48°38.96
126°39.97
24-May-12
22:22
Trace metal pumping to 20 m.
9 P4 48°38.97
126°39.99
24-May-12
22:45
Rosette (Cesium cast) to 601 dbar
(Ctd data)
10 P4 48°38.99
126°40.01
24-May-12
23:42
Bongo to 250 m for Stewart Group.
11 P4 48°38.95
126°40.00
25-May-12
00:08
Bongo to 250 m.
12 P4 48°38.98
126°39.93
25-May-12
00:46
Rosette (Cesium cast) to 201 dbar
(Ctd data)
13 P4 48°38.98
126°39.94
25-May-12
02:48
MPS to 1250 dbar.
14 P4 48°38.96
126°39.92
25-May-12
03:19
Rosette (Stewart group cast) to 501 dbar    (Ctd data)
15 P4 48°38.99
126°39.90
25-May-12
04:40
Rosette (Deep cast) to 1317 dbar
(Ctd data)
16 P4 48°38.90
126°40.01
25-May-12
07:19
Rosette (UBC cast) to 1301 dbar
(Ctd data)
17 P4 48°38.98
126°40.01
25-May-12
08:41
Stewart Group in situ pumps
to 200 m.
18 P4 48°39.00
126°40.03
25-May-12
13:33
Rosette (Light cast) to 104 dbar
(Ctd data to 153 dbar)
19 P5 48°41.50
127°09.98
25-May-12
16:34
Rosette to 31 dbar
(Ctd data to 2006 dbar)
20 P6 48°44.55
127°39.96
25-May-12
20:23
Rosette to 44 dbar
(Ctd data to 2010 dbar)
21 P7 48°46.58
128°10.01
26-May-12
00:36
Rosette to 16 dbar
(Ctd data to 2007 dbar)
22 P8 48°48.98
128°39.90
26-May-12
04:51
Rosette to 2002 dbar
(Ctd data)
23 P8 48°49.19
128°40.59
26-May-12
07:54
Bongo tow to 1200 m - Unprocessed
24 P9 48°51.36
129°10.03
26-May-12
11:06
Rosette to 52 dbar
(Ctd data to 2006 dbar)
25 P10 48°53.60
129°39.98
26-May-12
14:36
Rosette to 51 dbar
(Ctd data to 2006 dbar)
26 P11 48°56.00
130°09.96
26-May-12
18:09
Rosette to 61 dbar
(Ctd data to 2007 dbar)
27 P12 48°58.22
130°40.00
26-May-12
21:40
Rosette (DMS cast) to 302 dbar
(Ctd data)
28 P12 48°58.20
130°39.98
26-May-12
22:15
Trace metal pumping.
29 P12 48°58.19
130°39.96
26-May-12
23:01
Rosette (Deep cast) to 3276 dbar
(Ctd data)
30 P12 48°58.23
130°40.00
27-May-12
04:03
MPS to 2000 m.
31 P12 48°58.21
130°40.02
27-May-12
05:40
Rosette (Stewart group cast) to 501 dbar    (Ctd data)
32 P12 48°58.23
130°40.01
27-May-12
06:51
Bongo to 250 m.
33 P12 48°58.22
130°39.95
27-May-12
07:20
Bongo to 250 m for Stewart Group.
34 P12 48°58.22
130°39.97
27-May-12
07:50
Rosette (UBC cast) to 2001 dbar
(Ctd data)
35 P12 48°58.22
130°39.99
27-May-12
09:15
Stewart Group in situ pumps
to 200 m.
36 P12 48°58.18
130°39.95
27-May-12
13:31
Trace metal: Go-flo to 1000 m.
37 P12 48°58.13
130°40.06
27-May-12
16:16
Rosette (Light cast) to 165 dbar
(Ctd data to 202 dbar)
38 P13 49°02.68
131°39.95
27-May-12
21:18
Rosette to 2002 dbar
(Ctd data)
39 P14 49°07.43
132°39.92
28-May-12
03:18
Rosette to 52 dbar
(Ctd data to 2007 dbar)
40 P15 49°12.01
133°40.00
28-May-12
09:23
Rosette to 51 dbar
(Ctd data to 2008 dbar)
41 P16 49°17.00
134°39.96
28-May-12
15:04
Trace metal pumping to 20 m.
42 P16 49°17.04
134°40.00
28-May-12
15:44
Rosette (Light cast) to 67 dbar
(Ctd data to 203 dbar)
43 P16 49°16.98
134°39.97
28-May-12
16:15
Stewart Group in situ pumps
to 200 m.
44 P16 49°17.03
134°40.02
28-May-12
20:55
Rosette (DMS cast) to 302 dbar
(Ctd data)
45 P16 49°16.99
134°40.15
28-May-12
23:27
MPS to 2000 m.
46 P16 49°17.01
134°40.00
29-May-12
00:33
Rosette (Deep cast) to 3686 dbar
(Ctd data)
47   49°21.06
134°35.83
29-May-12
04:28
Deploy MetOcean float 16
48 P16 49°17.09
134°39.94
29-May-12
05:51
Bongo to 250 m
49 P16 49°17.00
134°39.87
29-May-12
06:13
Bongo to 250 m for Stewart Group.
50 P16 49°17.01
134°39.93
29-May-12
06:38
Rosette (Stewart group cast) to 502 dbar    (Ctd data)
51 P16 49°17.03
134°39.91
29-May-12
07:26
Trace metal: Go-flo to 3000 m.
52 P16 49°17.03
134°40.10
29-May-12
10:44
Trace metal: Go-flo to 75 m.
53 P17 49°21.02
135°40.01
29-May-12
15:39
Rosette to 50 dbar
(Ctd data to 2008 dbar)
54 P18 49°26.04
136°39.94
29-May-12
21:28
Rosette to 52 dbar
(Ctd data to 2008 dbar)
55 P19 49°30.05
137°39.90
30-May-12
03:32
Rosette to 52 dbar
(Ctd data to 2008 dbar)
56 P20 49°33.99
138°39.97
30-May-12
09:48
Trace metal pumping to 20 m.
57 P20 49°34.00
138°40.02
30-May-12
12:42
Bongo to 250 m
58 P20 49°34.00
138°40.02
30-May-12
13:00
Bongo to 250 m for Stewart Group.
59 P20 49°33.99
138°39.97
30-May-12
13:23
Rosette (Stewart group cast) to 500 dbar    (Ctd data)
60 P20 49°34.01
138°40.03
30-May-12
15:29
Rosette (Light cast) to 116 dbar
(Ctd data to 201 dbar)
61 P20 49°34.00
138°40.01
30-May-12
16:25
Rosette (Deep cast) to 4024 dbar
(Ctd data)
62 P20 49°34.06
138°39.98
30-May-12
20:29
Rosette (DMS cast) to 301 dbar
(Ctd data)
63 P20 49°34.00
138°39.23
30-May-12
21:23
Stewart Group in situ pumps
to 200 m.
64 P20 49°33.99
138°39.89
31-May-12
03:16
Bongo to 2000 m
65 P20 49°34.03
138°39.98
31-May-12
04:18
Trace metal: Go-flo to 3000 m.
66 P20 49°33.16
138°39.89
31-May-12
08:52
Trace metal pumping to 35 m.
67 P21 49°38.04
139°39.96
31-May-12
14:02
Rosette to 51 dbar
(Ctd data to 2006 dbar)
68 P21 49°38.04
139°40.16
31-May-12
15:20
Deploy MetOcean float 31
69   49°40.46
140°14.41
31-May-12
18:04
Deploy Drifter for Environment
Canada
70 P22 49°42.01
140°39.92
31-May-12
20:01
Rosette to 50 dbar
(Ctd data to 2008 dbar)
71 P23 49°46.03
141°39.88
01-Jun-12
02:01
Rosette (Calibration cast) to 2005 dbar    (Ctd data)
72 P24 49°50.17
142°40.04
01-Jun-12
08:02
Rosette to 51 dbar
(Ctd data to 2006 dbar)
73 P25 49°59.99
143°36.28
01-Jun-12
13:09
Rosette to 2002 dbar
(Ctd data)
74 P35 49°59.98
144°18.18
01-Jun-12
17:30
Rosette to 52 dbar
(Ctd data to 2007 dbar)
75 Traps-D 49°57.07
144°50.01
01-Jun-12
21:35
Deploy drifting sediment traps.
76 Traps-D 49°56.55
144°51.13
01-Jun-12
22:21
Rosette (Stewart group cast) to 502 dbar    (Ctd data)
77 Argo 49°58.99
144°52.02
01-Jun-12
23:29
Deploy Argo float for UW
78 P26 50°00.03
144°59.90
02-Jun-12
00:17
Rosette (Deep cast) to 4317 dbar
(Ctd data)
79 P26 50°00.01
144°59.95
02-Jun-12
04:45
MPS to 2000 m.
80 P26 50°00.00
144°59.97
02-Jun-12
07:30
Trace metal pumping to 20 m.
81 P26 50°00.03
144°59.96
02-Jun-12
08:28
Rosette (UBC & ONAr cast) to 2003 dbar    (Ctd data)
82 P26 50°00.01
144°59.95
02-Jun-12
09:49
Stewart Group in situ pumps
to 200 m.
83 Argo 49°58.91
144°47.71
02-Jun-12
15:28
Rosette (Light and Argo calibration cast) to
201 dbar    (Ctd data)
84 PA-006 50°03.66
144°48.84
02-Jun-12
17:56
Small boat Trace metal surface
sampling.
85 PA-006 50°03.08
144°54.06
02-Jun-12
22:21

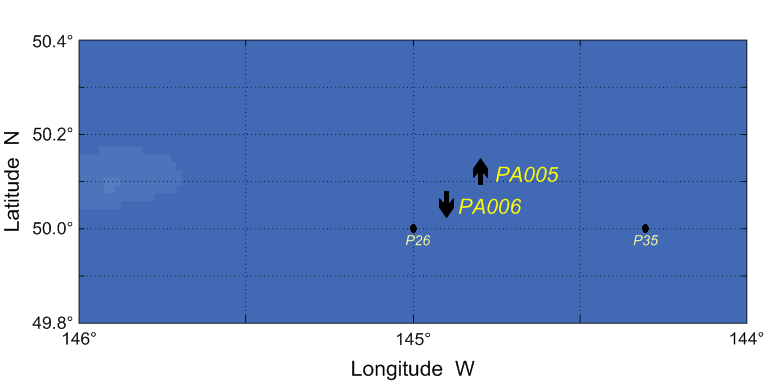

Deploy PMEL/NOAA PA-006
mooring
86 PA-006 50°04.62
144°54.48
02-Jun-12
22:55
Rosette (DMS cast) to 303 dbar
(Ctd data)
87 PA-006 50°03.56
144°54.05
02-Jun-12
23:57
Rosette (ONAr cast) to 251 dbar
(Ctd data to 503 dbar)
88 Argo 49°58.73
144°47.59
03-Jun-12
02:23
Rosette (Argo calibration cast) to
1001 dbar    (Ctd data)
89 P26 50°00.02
144°59.91
03-Jun-12
04:12
Rosette (ONAr cast) to 3401 dbar
(Ctd data)
90 P26 49°59.94
145°00.14
03-Jun-12
08:20
Trace metal: Go-flo to 4000 m.
91 P26 50°00.06
144°59.95
03-Jun-12
11:30
Bongo to 250 m
92 P26 49°59.99
145°00.03
03-Jun-12
11:50
Bongo to 250 m for Stewart Group.
93 Argo 49°59.74
144°51.63
03-Jun-12
12:44
Rosette (Argo calibration cast) to 11 dbar    (Ctd data)
94 PA-005 50°07.25
144°47.31
03-Jun-12
13:44
Rosette (Mooring calibration cast) to
6 dbar    (Ctd data to 201 dbar)
95 PA-005 50°07.26
144°47.87
03-Jun-12
16:41
Recover PMEL/NOAA PA-005
mooring
96 P26 49°59.95
145°00.08
03-Jun-12
23:03
Trace metal: Go-flo to 1200 m.
97 P26 50°00.00
144°59.88
04-Jun-12
02:04
Trace metal pumping to 35 m.
98 P26 49°59.98
144°59.96
04-Jun-12
03:33
Rosette (ONAr cast) to 4319 dbar
(Ctd data)
99 P26 49°59.99
144°59.97
04-Jun-12
11:40
Rosette (Cesium cast) to 601 dbar
(Ctd data)
100 P26 50°00.02
145°00.03
04-Jun-12
12:38
Rosette (Cesium cast) to 202 dbar
(Ctd data)
101 Argo 49°57.76
144°46.07
04-Jun-12
15:23
Rosette (Argo calibration cast) to 21 dbar    (Ctd data)
102 Traps-R 49°55.16
144°34.19
04-Jun-12
16:33
Rosette (Stewart group cast) to 602 dbar    (Ctd data)
103 Traps-R 49°55.19
144°32.24
04-Jun-12
17:30
Recover drifting sediment traps.
104   49°55.19
144°33.05
04-Jun-12
18:06
Deploy Drifter for Environment
Canada
105   49°52.36
142°29.55
05-Jun-12
00:45
Deploy Drifter for Environment
Canada
106   49°43.28
135°06.97
06-Jun-12
01:09
Recover Argo float for UW
107 P4 48°38.95
126°39.93
07-Jun-12
15:53
Rosette to 1322 dbar
(Ctd data)
108 P4 48°38.94
126°39.97
07-Jun-12
17:05
Trace metal: Go-flo.
109 P4 48°38.99
126°39.89
07-Jun-12
17:55
Trace metal: Go-flo to 1200 m.
110 P4 48°38.95
126°39.89
07-Jun-12
18:36
Trace metal pumping.

Top of page

Download data for the whole cruise

CTD data
List of CTD stations
Channels in CTD files



Chemistry (Rosette) data
List of Rosette casts
Channels in Rosette files



Zooplankton data



Trace Metal Data
For the Trace Metal data contact Kyle Simpson or Jay Cullen

Drifter data
  • MetOcean float 16 (DFO-IOS)
  • MetOcean float 31 (DFO-IOS)
  • Environment Canada Drifter
  • University of Washington Argo float #8397
  • Environment Canada Drifter
  • Environment Canada Drifter
  • University of Washington Argo float #7049 (Recovered)
Thermosalinographs (TSG) data (text files)

Top of page

Profiles of T, S, Sigma-t, DO, and their anomalies

1000-dbar profiles and anomalies with respect to the 1956-1991 averages

2000-dbar profiles and anomalies with respect to the 1981-2010 averages for Temperature, Salinity and Sigma-t,
and with respect to the 2001-2010 averages for Dissolved Oxygen

Documents

Top of page
