Cruise description

This cruise went really well. We completed all the stations along Line P even though we had to modify the order towards the end of the Line to avoid some bad weather. We looked for an eddy on the return leg using the Moving Vessel Profiler (MVP) without success. We also surveyed the west coast of Vancouver Island over La Perouse Bank for a short time with the MVP. Unfortunately the instrument was lost at the end of the cruise while sailing in Juan de Fuca Strait.
We did not sample any of the Line R stations but accomplished all our planned work in Queen Charlotte Sound (SS Line), Rivers Inlet and Fitz Hugh Sound/Hakai Passage.
Vicki Fabry collected some pteropods that we delivered in Bamfield for a TV series led by the BBC (South Pacific in the UK, Wild Pacific in the US).
The sampling done during this cruise was performed using a CTD, a Rosette, a Bongo and a Live Reeve net..
For further details see the Cruise_report.pdf in the Documents section.

Cruise personnel

Chief Scientist: Marie Robert    Institute of Ocean Sciences   (DFO)

Top of page

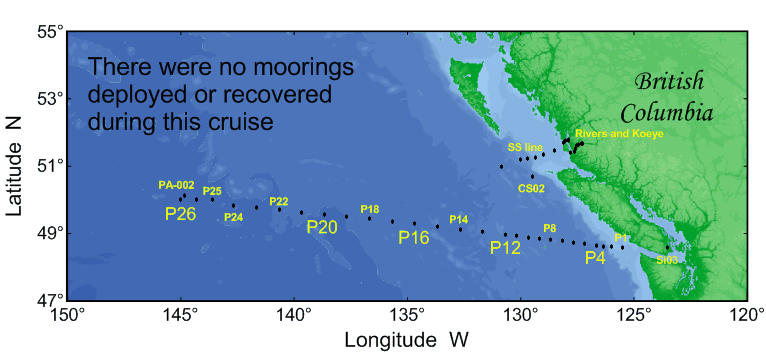

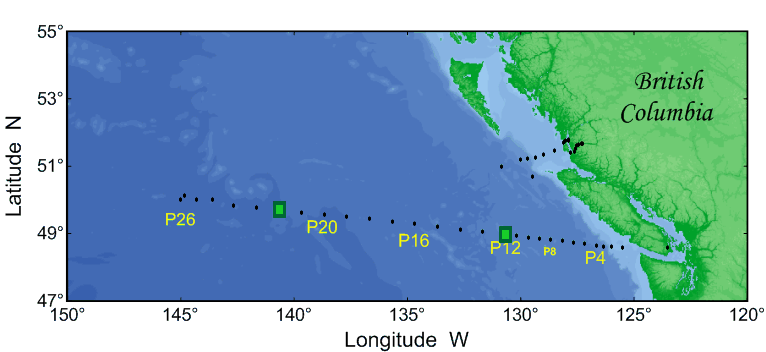

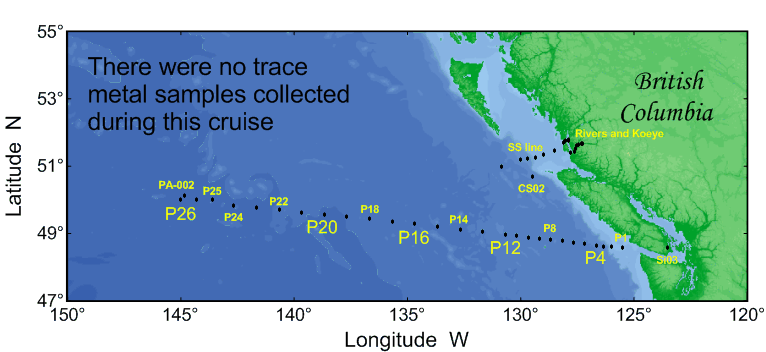

Map of cruise track and stations

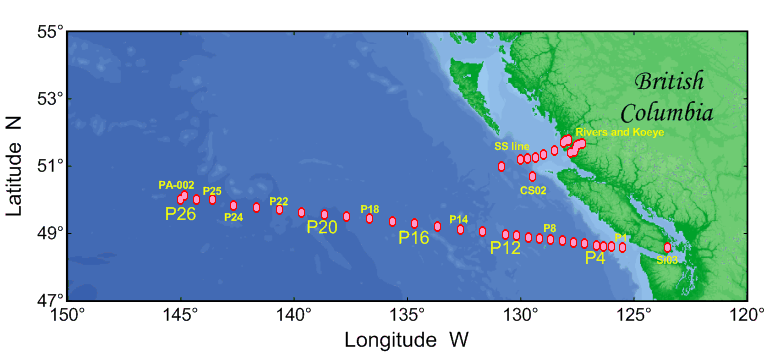

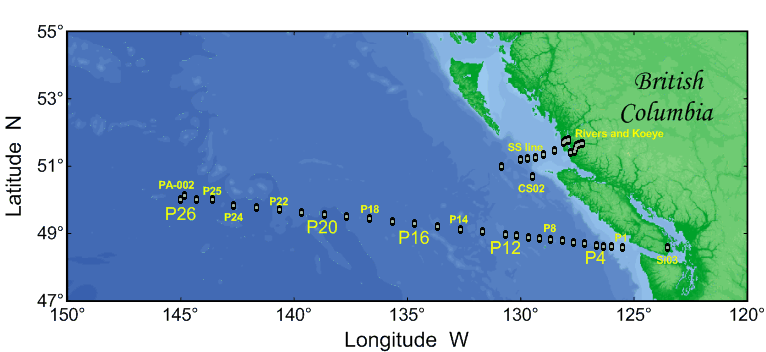

Map of Line-P stations for 2008-27

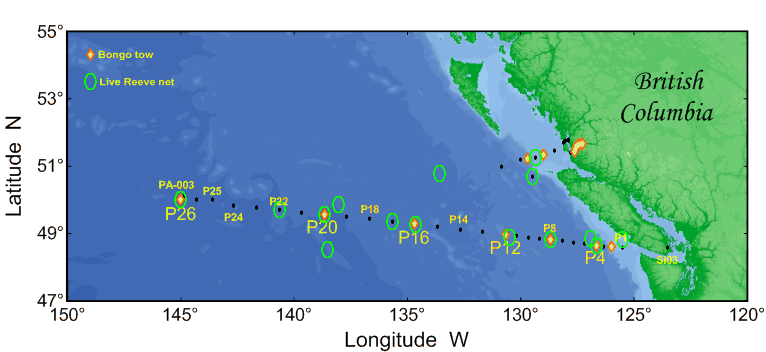

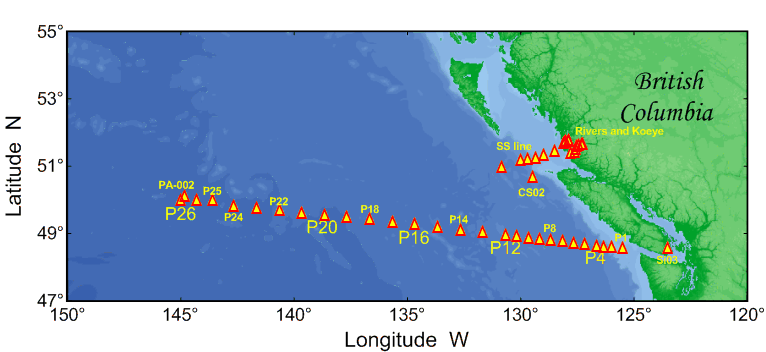

Click on the cast types below to see at which stations the casts were done. To access data.

Top of page

Table of stations and sampling done

Event Station Position Date (UTC)
Time (UTC)
Sampling
1 SI03 48°35.56
123°29.94
13-Aug-08
17:19
Rosette to 216 dbar
(Ctd data)
2   48°38.23
123°14.64
13-Aug-08
20:59
MVP profile
3 P1 48°34.47
125°29.99
14-Aug-08
10:52
Rosette to 5 dbar
(Ctd data to 106 dbar)
4   48°34.51
125°30.40
14-Aug-08
11:21
MVP profile
6 P2 48°35.96
125°59.96
14-Aug-08
14:06
Rosette (Deep and UBC cast) to 104 dbar
(Ctd data)
7 P2 48°36.00
126°00.04
14-Aug-08
14:40
Bongo tow to 100 m
8   48°35.87
126°00.50
14-Aug-08
14:55
MVP profile
9 P3 48°37.45
126°19.85
14-Aug-08
16:36
Rosette to 5 dbar
(Ctd data to 812 dbar)
10   48°37.45
126°20.94
14-Aug-08
17:26
MVP profile
11 P4 48°39.05
126°39.88
14-Aug-08
19:21
Rosette (Deep cast) to 1315 dbar
(Ctd data)
12 P4 48°38.92
126°39.93
14-Aug-08
20:36
Bongo tow to 250 m
13 P4 48°38.98
126°40.05
14-Aug-08
21:35
Rosette (DMS cast) to 300 dbar
(Ctd data)
14 P4 48°38.89
126°40.03
14-Aug-08
23:10
Rosette (UBC cast) to 1300 dbar
(Ctd data)
15 P4 48°39.95
126°40.12
15-Aug-08
01:03
Reeve net tow
16 P4 48°38.95
126°39.98
15-Aug-08
02:39
Rosette (UBC cast) to 1001 dbar
(Ctd data)
17   48°38.92
126°40.22
15-Aug-08
03:27
MVP profile
18 P5 48°41.66
127°09.90
15-Aug-08
06:03
Rosette to 5 dbar
(Ctd data to 2005 dbar)
19   48°41.43
127°10.02
15-Aug-08
07:25
MVP profile
20 P6 48°44.58
127°39.99
15-Aug-08
10:09
Rosette to 599 dbar
(Ctd data to 2005 dbar)
21   48°44.25
127°40.81
15-Aug-08
11:21
MVP profile
22 P7 48°46.60
128°09.94
15-Aug-08
13:54
Rosette to 7 dbar
(Ctd data to 2006 dbar)
23   48°46.57
128°10.22
15-Aug-08
15:06
MVP profile
24 P8 48°48.95
128°39.93
15-Aug-08
17:43
Rosette to 2001 dbar
(Ctd data)
25 P8 48°48.67
128°40.85
15-Aug-08
19:29
Bongo tow to 250 m
26 P8 48°48.71
128°41.16
15-Aug-08
20:17
Bongo tow to 700 m
27   48°48.99
128°42.37
15-Aug-08
20:40
MVP profile
28 P9 48°51.39
129°09.97
15-Aug-08
23:20
Rosette to 4 dbar
(Ctd data to 2006 dbar)
29   48°51.41
129°10.34
16-Aug-08
00:37
MVP profile
30 P10 48°53.60
129°39.86
16-Aug-08
03:22
Rosette to 4 dbar
(Ctd data to 2007 dbar)
31   48°53.62
129°40.20
16-Aug-08
04:43
MVP profile
32 P11 48°56.01
130°09.97
16-Aug-08
07:22
Rosette to 5 dbar
(Ctd data to 2006 dbar)
33   48°56.25
130°09.99
16-Aug-08
08:34
MVP profile
34   48°57.94
130°29.92
16-Aug-08
11:45
Reeve net tow
35 P12 48°58.20
130°39.96
16-Aug-08
12:22
Bongo to 250 m
36 P12 48°58.18
130°39.93
16-Aug-08
13:19
Rosette (UBC cast) to 2000 dbar
(Ctd data)
37 P12 48°58.19
130°39.99
16-Aug-08
14:56
Rosette (UBC cast) to 1001 dbar
(Ctd data)
38 P12 48°58.19
130°39.96
16-Aug-08
16:13
Rosette (Deep cast) to 3275 dbar
(Ctd data)
39 P12 48°58.19
130°40.03
16-Aug-08
19:14
Rosette (DMS cast) to 302 dbar
(Ctd data)
40   48°58.33
130°40.31
16-Aug-08
19:56
Deploy Argo float 3889
41   48°58.32
130°40.59
16-Aug-08
20:03
MVP profile
42 P13 49°02.64
131°39.90
17-Aug-08
01:10
Rosette to 5 dbar
(Ctd data to 2005 dbar)
43   49°02.64
131°40.01
17-Aug-08
02:18
MVP profile
44 P14 49°07.40
132°39.96
17-Aug-08
07:10
Rosette to 11 dbar
(Ctd data to 2006 dbar)
45   49°07.83
132°40.68
17-Aug-08
08:07
MVP profile
46 P15 49°12.02
133°39.98
17-Aug-08
12:03
Rosette to 7 dbar
(Ctd data to 2004 dbar)
47   49°12.05
133°40.14
17-Aug-08
13:00
MVP profile
48   49°16.65
134°39.30
17-Aug-08
18:18
Reeve net tow
49 P16 49°17.07
134°39.76
17-Aug-08
19:41
Bongo to 250 m
50 P16 49°16.95
134°39.92
17-Aug-08
20:00
Rosette (DMS cast) to 301 dbar
(Ctd data)
51 P16 49°16.92
134°39.95
17-Aug-08
21:19
Rosette (UBC cast) to 2000 dbar
(Ctd data)
52 P16 49°16.95
134°39.96
17-Aug-08
22:57
Rosette (UBC cast) to 1000 dbar
(Ctd data)
53 P16 49°17.05
134°39.96
18-Aug-08
00:01
Rosette (Deep cast) to 3684 dbar
(Ctd data)
54   49°17.11
134°41.65
18-Aug-08
02:18
MVP profile
55 P17 49°20.98
135°39.99
18-Aug-08
07:30
Rosette to 9 dbar
(Ctd data to 2005 dbar)
56   49°20.74
135°40.04
18-Aug-08
08:35
Reeve net tow
57   49°21.11
135°44.54
18-Aug-08
09:43
MVP profile
58 P18 49°26.02
136°39.98
18-Aug-08
13:33
Rosette to 14 dbar
(Ctd data to 2005 dbar)
59   49°26.15
136°40.57
18-Aug-08
14:35
MVP profile
60 P19 49°30.05
137°39.99
18-Aug-08
18:33
Rosette to 5 dbar
(Ctd data to 2006 dbar)
61   49°29.95
137°40.46
18-Aug-08
19:44
MVP profile
62 P20 49°33.98
138°39.93
19-Aug-08
00:00
Rosette (DMS cast) to 301 dbar
(Ctd data)
63 P20 49°33.97
138°39.94
19-Aug-08
01:13
Rosette (Deep cast) to 4025 dbar
(Ctd data)
64 P20 49°33.97
138°40.00
19-Aug-08
04:40
Rosette (UBC cast) to 2001 dbar
(Ctd data)
65 P20 49°34.07
138°40.18
19-Aug-08
06:19
Rosette (UBC cast) to 999 dbar
(Ctd data)
66 P20 49°34.19
138°40.01
19-Aug-08
07:22
Bongo to 250 m
67   49°34.46
138°40.44
19-Aug-08
07:40
Reeve net tow
68   49°35.37
138°46.08
19-Aug-08
08:53
MVP profile
69 P21 49°37.94
139°39.86
19-Aug-08
13:21
Rosette cast to 7 dbar
(Ctd data to 2006 dbar)
70   49°37.99
139°40.13
19-Aug-08
14:23
MVP profile
71   49°54.86
143°42.41
20-Aug-08
19:20
MVP profile
72 P26 50°00.03
144°59.87
21-Aug-08
01:29
Rosette (Deep cast) to 4314 dbar
(Ctd data)
73 P26 49°59.98
145°00.06
21-Aug-08
05:38
Rosette to 10 dbar
(Ctd data)
74 P26 50°00.08
145°00.10
21-Aug-08
06:17
Rosette (UBC cast) to 2000 dbar
(Ctd data)
75 P26 50°00.01
145°00.00
21-Aug-08
07:48
Rosette (UBC & ONAr) to 999 dbar
(Ctd data)
76 P26 49°59.99
144°59.96
21-Aug-08
10:05
Rosette 10 dbar
(Ctd data)
77 P26 50°00.03
144°59.97
21-Aug-08
10:37
Reeve net tow
78 P26 50°00.04
144°59.91
21-Aug-08
12:21
Bongo to 250 m
79 P26 50°00.01
144°59.98
21-Aug-08
13:10
Bongo to 1000 m
80 P26 50°00.08
145°00.15
21-Aug-08
~13:40
Bongo to 700 m
81 P26 50°00.03
145°00.06
21-Aug-08
14:48
Rosette to 9 dbar
(Ctd data)
82   50°00.40
145°00.12
21-Aug-08
15:06
MVP profile
83 PA-002 50°08.28
144°50.02
21-Aug-08
16:37
Rosette 30 dbar
(Ctd data to 208 dbar)
84   50°07.87
144°52.49
21-Aug-08
17:09
MVP profile
85 P26 50°00.00
144°59.96
21-Aug-08
20:40
Rosette (ONAr & CSU cast) to 1250 dbar
(Ctd data)
86 P26 49°59.99
144°59.98
21-Aug-08
22:59
Rosette (DMS cast) to 300 dbar
(Ctd data)
87 P26 49°59.99
145°00.04
22-Aug-08
00:56
Rosette (Light cast) to 37 dbar
(Ctd data to 51 dbar)
88   49°59.99
145°00.05
22-Aug-08
01:26
MVP profile
89 P35 50°00.04
144°18.11
22-Aug-08
11:35
Rosette to 5 dbar
(Ctd data to 2012 dbar)
90   50°00.13
144°16.94
22-Aug-08
12:42
MVP profile
91 P25 49°59.97
143°36.31
22-Aug-08
15:28
Rosette (Calibration cast) to 2000 dbar
(Ctd data)
92   49°59.61
143°36.04
22-Aug-08
16:46
MVP profile
93 P24 49°50.22
142°40.03
22-Aug-08
20:46
Rosette to 10 dbar
(Ctd data to 2005 dbar)
94   49°50.34
142°39.63
22-Aug-08
21:56
MVP profile
95 P23 49°46.08
141°40.00
23-Aug-08
01:51
Rosette to 5 dbar
(Ctd data to 2006 dbar)
96   49°46.00
141°39.69
23-Aug-08
02:58
MVP profile
97 P22 49°42.05
140°39.88
23-Aug-08
06:50
Rosette to 12 dbar
(Ctd data to 2005 dbar)
98 P22 49°41.99
140°39.98
23-Aug-08
08:08
Deploy Argo float 3890
98b   49°41.82
140°39.78
23-Aug-08
08:20
Reeve net tow
99   49°39.15
140°34.98
23-Aug-08
09:44
MVP profile
100   48°59.68
139°29.47
23-Aug-08
15:20
MVP profile
101   48°36.75
138°59.62
23-Aug-08
18:40
MVP profile
102   48°30.54
138°30.47
23-Aug-08
22:17
Reeve net tow
103   48°34.00
138°29.19
23-Aug-08
23:45
MVP profile
104   49°14.69
138°15.68
24-Aug-08
04:01
MVP profile
105   49°50.97
138°03.04
24-Aug-08
08:00
Reeve net tow
106   49°54.98
138°01.11
24-Aug-08
09:22
MVP profile
107   50°08.92
137°00.77
24-Aug-08
13:39
MVP profile
108   50°18.10
135°48.24
24-Aug-08
18:18
MVP profile
109   50°46.56
133°35.88
25-Aug-08
07:28
Reeve net tow
110   50°44.22
133°38.92
25-Aug-08
08:49
MVP profile
111   50°52.03
132°18.71
25-Aug-08
13:52
MVP profile
112   50°55.54
131°34.41
25-Aug-08
16:43
MVP profile
113 SS0 51°00.03
130°49.72
25-Aug-08
19:37
Rosette to 31 dbar
(Ctd data to 2006 dbar)
114   51°00.08
130°49.92
25-Aug-08
20:45
MVP profile
115 SS1 51°11.94
129°59.97
26-Aug-08
00:51
Rosette to 485 dbar
(Ctd data)
116 SS2 51°13.01
129°42.99
26-Aug-08
02:56
Rosette to 7 dbar
(Ctd data to 576 dbar)
117 SS2 51°13.10
129°42.96
26-Aug-08
03:24
Bongo to 250 m
118   51°13.10
129°42.96
26-Aug-08
03:47
MVP profile
119 SS3 51°14.96
129°21.24
26-Aug-08
05:26
Rosette to 282 dbar
(Ctd data)
120   51°14.99
129°21.28
26-Aug-08
06:06
Reeve net tow
121   51°15.97
129°17.88
26-Aug-08
07:04
MVP profile
122 SS4 51°20.97
129°00.07
26-Aug-08
08:30
Bongo to 220 m
123 SS4 51°21.00
129°00.02
26-Aug-08
08:57
Rosette to 4 dbar
(Ctd data to 231 dbar)
124   51°21.01
129°00.04
26-Aug-08
09:14
MVP profile
125   51°00.69
127°57.65
26-Aug-08
13:52
MVP profile
126   50°50.44
127°29.19
26-Aug-08
23:39
MVP profile
127 SS7 51°24.78
127°47.60
27-Aug-08
04:51
Rosette to 116 dbar
(Ctd data)
128 Ri1 51°26.40
127°38.27
27-Aug-08
06:12
Rosette to 312 dbar
(Ctd data)
129 Ri1 51°26.33
127°38.16
27-Aug-08
07:23
Bongo to 315 m
130 Ri2 51°31.29
127°33.61
27-Aug-08
08:53
Bongo to 320 m
131 Ri2 51°31.20
127°33.55
27-Aug-08
09:19
Rosette to 6 dbar
(Ctd data to 320 dbar)
132 Ri3 51°35.88
127°32.10
27-Aug-08
10:22
Rosette to 5 dbar
(Ctd data to 319 dbar)
133 Ri3 51°35.99
127°31.92
27-Aug-08
10:48
Bongo to 315 m
134 Ri4 51°38.86
127°26.58
27-Aug-08
11:55
Bongo to 285 m
135 Ri4 51°38.87
127°26.70
27-Aug-08
12:24
Rosette to 289 dbar
(Ctd data)
136 Ri5 51°40.72
127°19.96
27-Aug-08
13:47
Rosette to 5 dbar
(Ctd data to 189 dbar)
137 Ri5 51°40.68
127°19.97
27-Aug-08
14:08
Bongo to 190 m
138 Ri6 51°40.47
127°17.05
27-Aug-08
15:04
Bongo to 133 m
139 Ri6 51°40.52
127°17.01
27-Aug-08
15:28
Rosette to 5 dbar
(Ctd data to 139 dbar)
140   51°40.63
127°17.73
27-Aug-08
15:48
MVP profile
141 M2 51°46.50
127°53.25
27-Aug-08
22:20
Rosette to 188 dbar
(Ctd data)
142 M3 51°46.36
127°54.60
27-Aug-08
23:25
Rosette to 323 dbar
(Ctd data)
143 M4 51°44.71
128°00.12
28-Aug-08
00:37
Rosette to 425 dbar
(Ctd data)
144 M5 51°43.47
128°03.49
28-Aug-08
01:52
Rosette to 4 dbar
(Ctd data to 358 dbar)
145 M6 51°42.73
128°07.47
28-Aug-08
03:00
Rosette to 26 dbar
(Ctd data to 233 dbar)
146   51°42.85
128°07.62
28-Aug-08
03:20
MVP profile
147 SS5 51°28.23
128°30.12
28-Aug-08
06:20
Rosette to 189 dbar
(Ctd data)
148   51°27.67
128°30.88
28-Aug-08
07:05
MVP profile
149 CS02 50°41.27
129°28.04
28-Aug-08
14:43
Rosette to 1888 dbar
(Ctd data)
150   50°41.35
129°28
28-Aug-08

Reeve net tow
151   49°19.23
127°29.30
29-Aug-08
11:45
Reeve net tow
152 P4 48°38.98
126°39.96
29-Aug-08
14:11
Rosette to 15 dbar
(Ctd data to 25 dbar)
153   48°30.28
126°03.76
29-Aug-08
17:10
MVP profile
154   48°31.63
126°01.54
29-Aug-08
18:04
MVP profile
156   48°49.84
125°30.01
29-Aug-08
21:10
Reeve net tow
157   48°29.66
124°33.23
30-Aug-08
11:42
MVP profile

Top of page

Download data for the whole cruise

CTD data
List of CTD casts
Channels in CTD files




Chemistry (Rosette) data
List of Rosette casts Channels in Rosette files




Zooplankton data



Drifter data

  • Argo float 3889
  • Argo float 3890
  •

    Thermosalinographs (TSG) data (text files)



    Surface and Loop data in text format

    Top of page

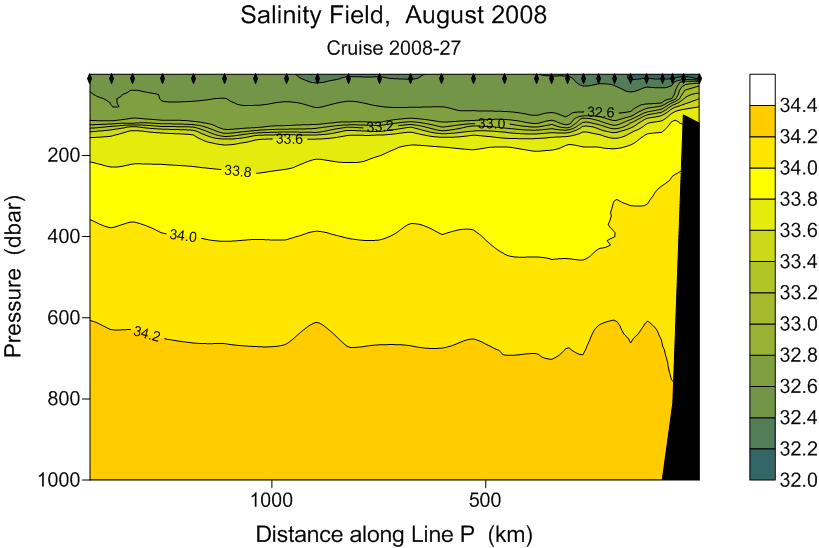

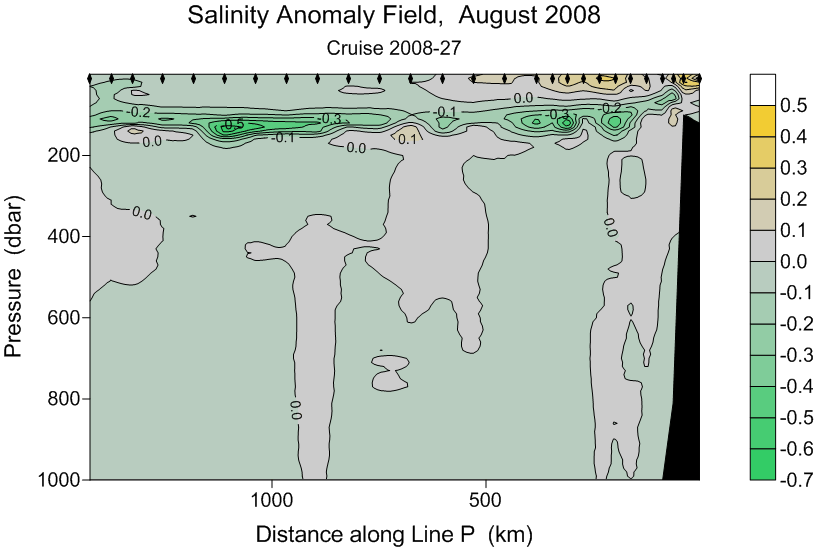

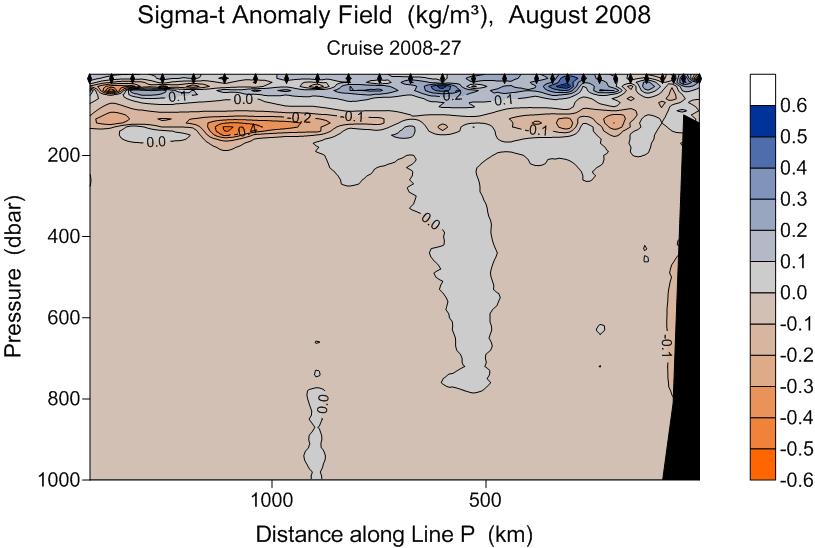

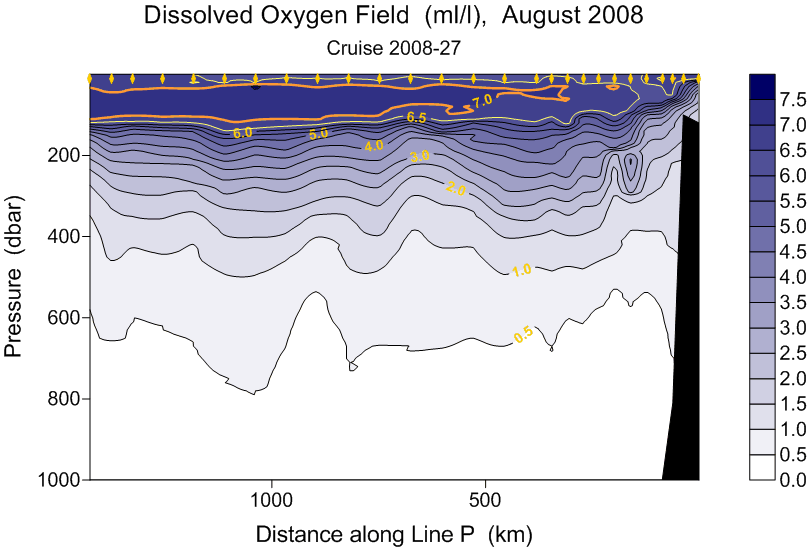

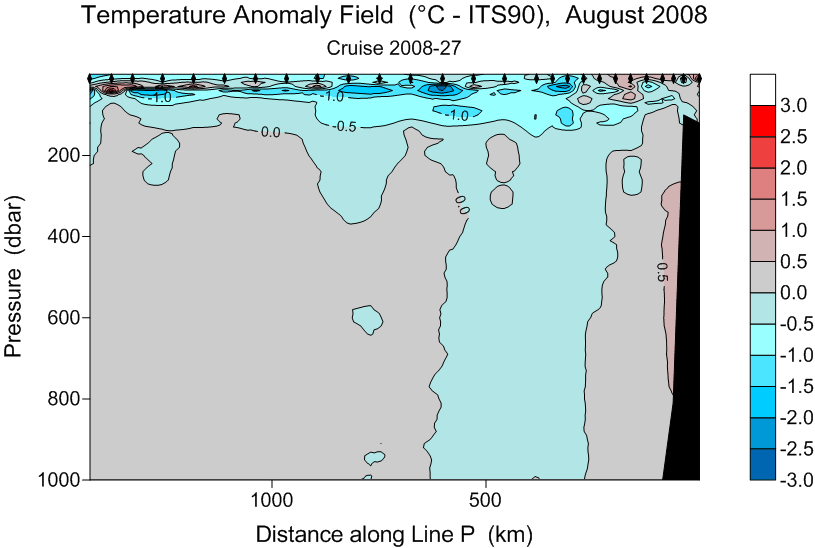

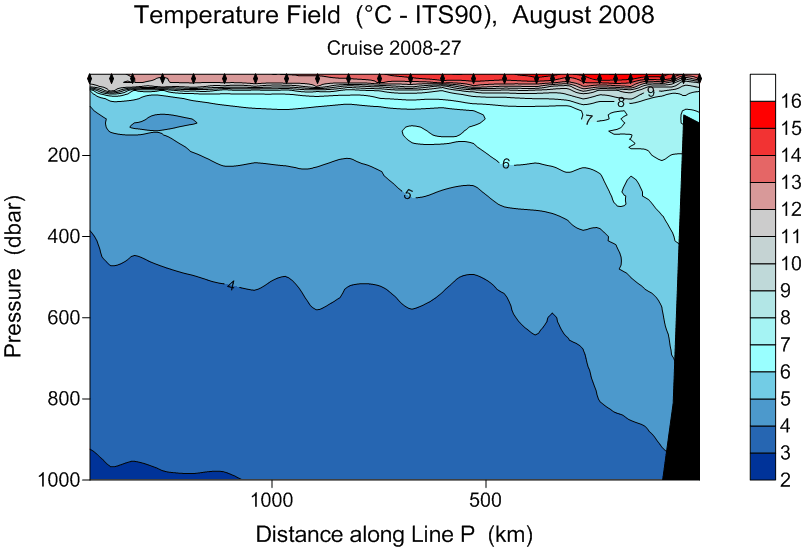

    Profiles of T, S, Sigma-t, DO, and their anomalies

    1000-dbar profiles and anomalies with respect to the 1956-1991 averages

    Documents

    Top of page
