Cruise 2007-01, 7 - 26 February 2007
Cruise description
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cruise description

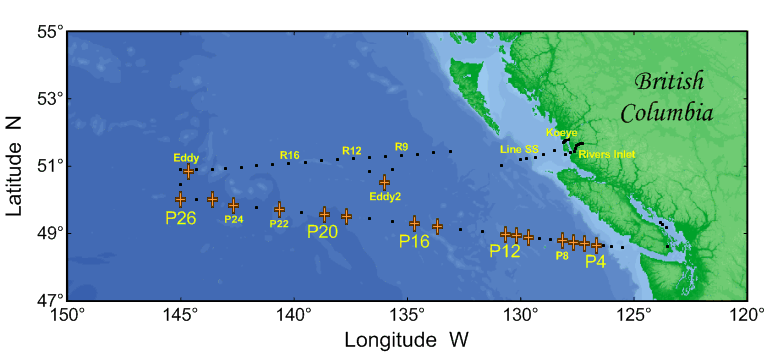

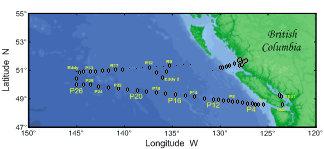

The sampling done during this cruise was along Line P, Line R, Line SS, in Rivers Inlet, and in Fitz Hugh Sound/Hakai Passage.
We also studied two eddies: one just north-east of Station P and one between Line P and Line R.
The sampling done during this cruise was performed using a
CTD, a
Rosette, some
X-Niskin bottles,
and a
Bongo.
For further details see 2007-01_cruise_report.pdf in the Documents section.
|
|
|
|
|
|
 |
Table of stations and sampling done
- For Trace Metal data contact Kyle Simpson
- For HPLC data contact Angelica Peña
- For ONAr data contact Roberta Hamme
- For a list of data available in the CTD files please refer to
2007-01-ctd-channels.txt
- For a list of data available in the Rosette files please refer to 2007-01-che-channels.txt
2007-01-ctd-channels.txt
| Event | Station | Position |
Date (UTC) Time (UTC) |
Sampling |
| 1 | SI03 |
48°35.60 123°29.96 |
08-Feb-07 18:28 |
Rosette cast to 215 dbar (Ctd data) |
| 2 | SI03 |
48°35.59 123°30.02 |
08-Feb-07 19:33 |
Rosette cast to 200 dbar (Ctd data) |
| 3 | P1 |
48°34.55 125°29.98 |
09-Feb-07 10:20 |
Rosette to 6 dbar (Ctd data to 105 dbar) |
| 4 | P2 |
48°36.03 126°00.03 |
09-Feb-07 12:44 |
Rosette to 109 dbar (Ctd data) |
| 5 | P2 |
48°36.01 126°00.01 |
09-Feb-07 13:52 |
Bongo tow to 100 m |
| 6 | P3 |
48°37.52 126°20.00 |
09-Feb-07 14:56 |
Rosette to 4 dbar (Ctd data to 756 dbar) |
| 7 | P4 |
48°39.02 126°40.02 |
09-Feb-07 16:48 |
Rosette (Deep cast) to 1323 dbar (Ctd data) |
| 8 | P4 |
48°39.00 126°39.97 |
09-Feb-07 17:59 |
Bongo tow to 250 m |
| 9 | P4 |
48°39.00 126°39.99 |
09-Feb-07 18:48 |
Rosette (DMS cast) to 201 dbar (Ctd data) |
| 10 | P4 |
48°39.00 126°40.00 |
09-Feb-07 19:30 |
TM pumping to 40 m |
| 11 | P4 |
48°39.00 126°40.00 |
09-Feb-07 20:30 |
Go-flo to 75 and 100 m |
| 12 | P5 |
48°41.46 127°09.92 |
09-Feb-07 23:00 |
Rosette to 4 dbar (Ctd data to 2006 dbar) |
| 13 | P5 |
48°41.59 127°09.95 |
10-Feb-07 00:10 |
Go-flo to 10 and 25 m |
| 14 | P6 |
48°44.62 127°40.00 |
10-Feb-07 02:35 |
Rosette to 7 dbar (Ctd data to 2008 dbar) |
| 15 | P6 |
48°44.60 127°40.21 |
10-Feb-07 03:25 |
Go-flo to 10 and 25 m |
| 16 | P7 |
48°46.61 128°10.05 |
10-Feb-07 05:56 |
Go-flo to 10 and 25 m |
| 17 | P7 |
48°46.63 128°10.25 |
10-Feb-07 06:23 |
Rosette to 2 dbar (Ctd data to 2009 dbar) |
| 18 | P8 |
48°48.89 128°39.99 |
10-Feb-07 09:45 |
Bongo tow to 250 m |
| 19 | P8 |
48°48.99 128°40.01 |
10-Feb-07 10:12 |
Rosette to 2006 dbar (Ctd data) |
| 20 | P9 |
48°51.40 129°09.97 |
10-Feb-07 13:45 |
Rosette to 5 dbar (Ctd data to 2005 dbar) |
| 21 | P10 |
48°53.59 129°39.93 |
10-Feb-07 16:39 |
Rosette to 5 dbar (Ctd data to 2005 dbar) |
| 22 | P10 |
48°53.58 129°39.94 |
10-Feb-07 17:30 |
Go-flo to 10 and 25 m |
| 23 | P11 |
48°56.00 130°10.02 |
10-Feb-07 20:07 |
Rosette to 6 dbar (Ctd data to 2005 dbar) |
| 24 | P11 |
48°55.70 130°10.51 |
10-Feb-07 21:12 |
Go-flo to 10 and 25 m |
| 25 | P12 |
48°58.23 130°40.00 |
10-Feb-07 23:23 |
Rosette (DMS cast) to 202 dbar (Ctd data) |
| 26 | P12 |
48°58.22 130°40.01 |
10-Feb-07 23:54 |
Bongo to 250 m |
| 27 | P12 |
48°58.25 130°39.94 |
11-Feb-07 00:26 |
TM pumping to 40 m |
| 28 | P12 |
48°58.25 130°39.94 |
11-Feb-07 01:47 |
Go-flo to 75 m |
| 29 | P12 |
48°58.32 130°39.88 |
11-Feb-07 02:05 |
Go-flo to 100, 150, 200 m |
| 30 | P12 |
48°58.24 130°40.02 |
11-Feb-07 02:33 |
Rosette (Deep cast) to 3275 dbar (Ctd data) |
| 31 | P13 |
49°02.58 131°40.03 |
11-Feb-07 08:27 |
Rosette to 4 dbar (Ctd data to 2004 dbar) |
| 32 | P14 |
49°07.43 132°40.03 |
11-Feb-07 13:17 |
Rosette to 3 dbar (Ctd data to 2006 dbar) |
| 33 | P15 |
49°12.03 133°39.95 |
11-Feb-07 18:09 |
Rosette to 6 dbar (Ctd data to 2016 dbar) |
| 34 | P15 |
49°12.02 133°40.00 |
11-Feb-07 19:07 |
Go-flo to 10 and 25 m |
| 35 | P16 |
49°16.88 134°40.01 |
11-Feb-07 23:17 |
TM Zodiac surface sampling |
| 36 | P16 |
49°16.99 134°39.99 |
11-Feb-07 23:51 |
Rosette (DMS cast) to 198 dbar (Ctd data) |
| 37 | P16 |
49°17.00 134°39.98 |
12-Feb-07 00:30 |
Bongo to 250 m |
| 38 | P16 |
49°17.02 134°39.88 |
12-Feb-07 00:45 |
TM pumping to 40 m |
| 39 | P16 |
49°16.97 134°39.98 |
12-Feb-07 01:54 |
Go-flo to 75 and 100 m |
| 40 | P16 |
49°16.97 134°39.98 |
12-Feb-07 02:10 |
Go-flo to 150 and 200 m |
| 41 | P16 |
49°16.98 134°39.98 |
12-Feb-07 02:26 |
Rosette (Deep cast) to 3684 dbar (Ctd data) |
| 42 | P17 |
49°21.00 135°40.05 |
12-Feb-07 09:07 |
Rosette to 6 dbar (Ctd data to 2007 dbar) |
| 43 | P18 |
49°26.01 136°40.00 |
12-Feb-07 14:09 |
Rosette to 4 dbar (Ctd data to 2006 dbar) |
| 44 | P19 |
49°30.00 137°39.99 |
12-Feb-07 19:28 |
Rosette to 5 dbar (Ctd data to 2006 dbar) |
| 45 | P19 |
49°30.14 137°40.19 |
12-Feb-07 20:21 |
Go-flo to 10 and 25 m |
| 46 | P20 |
49°34.12 138°40.04 |
13-Feb-07 00:40 |
Rosette (DMS cast) to 201 dbar (Ctd data) |
| 47 | P20 |
49°34.08 138°40.08 |
13-Feb-07 01:10 |
Bongo to 250 m |
| 48 | P20 |
49°33.64 138°39.41 |
13-Feb-07 01:20 |
TM pumping to 40 m |
| 49 | P20 |
49°33.62 138°39.42 |
13-Feb-07 02:51 |
Go-flo to 100 and 200 m |
| 50 | P20 |
49°34.05 138°40.02 |
13-Feb-07 13:30 |
Pumping to 10 m for UBC bulk water |
| 51 | P20 |
49°33.98 138°40.05 |
13-Feb-07 16:01 |
Rosette (Deep cast) to 4021 dbar (Ctd data) |
| 52 | P21 |
49°37.90 139°40.16 |
13-Feb-07 22:27 |
Rosette to 5 dbar (Ctd data to 2004 dbar) |
| 53 | P22 |
49°42.14 140°39.70 |
14-Feb-07 03:39 |
Ctd to 2007 dbar |
| 54 | P22 |
49°43.04 140°39.45 |
14-Feb-07 04:43 |
Go-flo to 10 and 25 m |
| 55 | P23 |
49°46.00 141°40.00 |
14-Feb-07 10:44 |
Ctd data to 2006 dbar |
| 56 | P24 |
49°50.23 142°39.95 |
14-Feb-07 18:24 |
Ctd data to 2008 dbar |
| 57 | P24 |
49°50.19 142°39.97 |
14-Feb-07 19:36 |
Go-flo to 10 and 25 m |
| 58 | P25 |
49°59.99 143°36.10 |
15-Feb-07 00:07 |
Ctd to 2007 dbar |
| 59 | P25 |
49°59.87 143°36.08 |
15-Feb-07 01:10 |
Go-flo to 10 and 25 m |
| 60 | P35 |
50°00.02 144°18.14 |
15-Feb-07 04:24 |
Ctd to 2007 dbar |
| 61 | P26 |
50°00.15 145°00.02 |
15-Feb-07 08:25 |
Go-flo to 75 and 100 m |
| 62 | P26 |
49°59.99 144°59.95 |
15-Feb-07 08:48 |
Go-flo to 150 m |
| 63 | P26 |
50°00.00 145°00.00 |
15-Feb-07 09:09 |
Go-flo to 200 and 300 m |
| 64 | P26 |
50°00.02 144°59.95 |
15-Feb-07 10:29 |
Go-flo to 400, 600 and 800 m |
| 65 | P26 |
49°59.99 145°00.00 |
15-Feb-07 12:05 |
TM pumping to 40 m |
| 66 | P26 |
49°59.99 144°59.98 |
15-Feb-07 13:17 |
Rosette (ONAr cast) to 4002 dbar (Ctd data) |
| 67 | P26 |
49°59.96 145°00.01 |
15-Feb-07 16:48 |
Rosette (DMS cast) to 199 dbar (Ctd data) |
| 68 | P26 |
49°59.97 144°59.96 |
15-Feb-07 17:54 |
Rosette (Deep cast) to 4305 dbar (Ctd data) |
| 69 | P26 |
50°00.01 145°00.01 |
15-Feb-07 22:14 |
Rosette (DMS cast) to 203 dbar (Ctd data) |
| 70 | P26 |
50°00.12 145°00.62 |
15-Feb-07 22:56 |
Bongo to 250 m |
| 71 | P26 |
50°00.00 145°00.03 |
15-Feb-07 23:34 |
Bongo to 1000 m |
| (73) | P26 |
50°00.03 145°00.03 |
16-Feb-07 00:01 |
TM pumping for bulk water |
| 72 | P26 |
49°59.99 144°59.94 |
16-Feb-07 03:02 |
Rosette (DMS cast) to 200 dbar (Ctd data) |
| 74 | P41 |
50°26.97 144°59.97 |
16-Feb-07 06:15 |
Rosette to 5 dbar (Ctd data to 2005 dbar) |
| 75 | Eddy |
50°50.01 144°40.02 |
16-Feb-07 09:55 |
Go-flo to 75 and 100 m |
| 76 | Eddy |
50°50.01 144°40.02 |
16-Feb-07 10:14 |
Go-flo to 150 and 200 m |
| 77 | Eddy |
50°50.01 144°40.03 |
16-Feb-07 10:53 |
Go-flo to 300 and 400 m |
| 78 | Eddy |
50°50.00 144°40.02 |
16-Feb-07 11:35 |
Go-flo to 600 and 800 m |
| 79 | Eddy |
50°50.01 144°40.03 |
16-Feb-07 12:11 |
Rosette to 2003 dbar (Ctd data) |
| 80 | Eddy |
50°50.01 144°39.97 |
16-Feb-07 13:35 |
TM pumping to 40 m |
| 81 | Eddy |
50°50.01 144°39.97 |
16-Feb-07 14:20 |
Bongo to 250 m |
| 82 | P49 |
50°54.02 144°17.31 |
16-Feb-07 16:30 |
Rosette to 4 dbar (Ctd data to 2008 dbar) |
| 83 | P33 |
50°53.98 143°35.56 |
16-Feb-07 20:31 |
Rosette to 2005 dbar (Ctd data) |
| 84 | P33 |
50°54.07 143°35.42 |
16-Feb-07 22:00 |
Bongo to 250 m |
| 85 | R20 |
50°55.71 143°00.99 |
17-Feb-07 00:25 |
Rosette to 6 dbar (Ctd data to 2006 dbar) |
| 86 | R19 |
50°58.02 142°20.02 |
17-Feb-07 04:06 |
Rosette to 5 dbar (Ctd data to 2005 dbar) |
| 87 | R18 |
51°00.00 141°39.08 |
17-Feb-07 08:12 |
Ctd to 2007 dbar |
| 88 | R17 |
51°02.03 140°56.05 |
17-Feb-07 11:57 |
Rosette to 2003 dbar (Ctd data) |
| 89 | R16 |
51°03.99 140°13.96 |
17-Feb-07 15:57 |
Rosette to 6 dbar (Ctd data to 2005 dbar) |
| 90 | R12 |
51°12.98 137°22.93 |
18-Feb-07 16:08 |
Rosette to 2006 dbar (Ctd data) |
| 91 | R12 |
51°12.97 137°23.05 |
18-Feb-07 17:32 |
Bongo to 250 m |
| 92 | R11S |
50°49.98 136°40.29 |
18-Feb-07 21:26 |
Rosette (Calibration cast) to 2007 dbar (Ctd data) |
| 93 | Eddy2 |
50°30.07 135°59.89 |
19-Feb-07 01:53 |
Rosette to 2006 dbar (Ctd data) |
| 94 | Eddy2 |
50°30.01 135°59.84 |
19-Feb-07 03:45 |
Go-flo to 75 and 100 m |
| 95 | Eddy2 |
50°30.07 135°59.58 |
19-Feb-07 04:02 |
Go-flo to 150 and 200 m |
| 96 | Eddy2 |
50°29.45 135°59.91 |
19-Feb-07 04:22 |
Go-flo to 300 and 400 m |
| 97 | Eddy2 |
50°29.80 135°59.07 |
19-Feb-07 04:50 |
Go-flo to 600 and 800 m |
| 98 | Eddy2 |
50°29.72 135°59.30 |
19-Feb-07 05:35 |
Go-flo to 10, 25 and 40 m |
| 99 | Eddy2 |
50°29.72 135°59.51 |
19-Feb-07 06:02 |
Bongo to 250 m |
| 100 | R10S |
50°54.30 135°37.99 |
19-Feb-07 09:22 |
Rosette to 4 dbar (Ctd data to 2007 dbar) |
| 101 | R9 |
51°19.02 135°14.97 |
19-Feb-07 14:11 |
Rosette to 2005 dbar (Ctd data) |
| 102 | SS4 |
51°21.00 129°00.04 |
20-Feb-07 16:06 |
Rosette to 4 dbar (Ctd data to 227 dbar) |
| 103 | SS4 |
51°21.04 129°00.08 |
20-Feb-07 16:29 |
Bongo to 225 m |
| 104 | SS5 |
51°28.04 128°30.11 |
20-Feb-07 18:57 |
Rosette to 184 dbar (Ctd data) |
| 105 | SS6 |
51°19.98 127°59.97 |
20-Feb-07 21:35 |
Rosette to 5 dbar (Ctd data to 162 dbar) |
| 106 | SS6 |
51°19.79 127°59.92 |
20-Feb-07 21:56 |
Bongo to 150 m |
| 107 | SS7 |
51°24.71 127°47.60 |
20-Feb-07 23:05 |
Rosette to 110 dbar (Ctd data) |
| 108 | Ri1 |
51°26.39 127°38.10 |
21-Feb-07 00:13 |
Rosette to 326 dbar (Ctd data) |
| 109 | Ri1 |
51°26.40 127°38.14 |
21-Feb-07 00:45 |
Bongo to 300 m |
| 110 | Ri2 |
51°31.31 127°33.65 |
21-Feb-07 01:49 |
Rosette to 5 dbar (Ctd data to 326 dbar) |
| 111 | Ri2 |
51°31.29 127°33.44 |
21-Feb-07 02:15 |
Bongo to 325 m |
| 112 | Ri3 |
51°35.93 127°31.99 |
21-Feb-07 03:00 |
Bongo to 250 m |
| 113 | Ri3 |
51°35.93 127°32.04 |
21-Feb-07 03:17 |
Rosette to 5 dbar (Ctd data to 310 dbar) |
| 114 | Ri4 |
51°38.89 127°26.74 |
21-Feb-07 04:20 |
Rosette to 288 dbar (Ctd data) |
| 115 | Ri4 |
51°38.89 127°26.72 |
21-Feb-07 04:55 |
Bongo to 250 m |
| 116 | Ri5 |
51°40.70 127°19.91 |
21-Feb-07 05:40 |
Bongo to 190 m |
| 117 | Ri5 |
51°40.73 127°19.95 |
21-Feb-07 05:49 |
Rosette to 5 dbar (Ctd data to 190 dbar) |
| 118 | Ri6 |
51°40.51 127°17.08 |
21-Feb-07 06:28 |
Rosette to 5 dbar (Ctd data to 134 dbar) |
| 119 | Ri6 |
51°40.48 127°17.09 |
21-Feb-07 06:41 |
Bongo to 135 m |
| 120 | M2 |
51°46.43 127°53.26 |
21-Feb-07 11:41 |
Rosette to 186 dbar (Ctd data) |
| 121 | M3 |
51°46.28 127°54.60 |
21-Feb-07 12:24 |
Rosette to 323 dbar (Ctd data) |
| 122 | M4 |
51°44.68 128°00.24 |
21-Feb-07 13:20 |
Rosette to 423 dbar (Ctd data) |
| 123 | M5 |
51°43.37 128°03.62 |
21-Feb-07 14:10 |
Rosette to 5 dbar (Ctd data to 320 dbar) |
| 124 | M6 |
51°42.64 128°07.45 |
21-Feb-07 14:44 |
Rosette to 5 dbar (Ctd data to 235 dbar) |
| 125 | SS3 |
51°15.10 129°21.30 |
21-Feb-07 21:19 |
Rosette to 283 dbar (Ctd data) |
| 126 | SS2 |
51°13.02 129°43.02 |
21-Feb-07 23:29 |
Rosette to 5 dbar (Ctd data to 560 dbar) |
| 127 | SS2 |
51°12.99 129°43.01 |
22-Feb-07 00:03 |
Bongo to 250 m |
| 128 | SS1 |
51°12.04 129°59.95 |
22-Feb-07 01:36 |
Rosette to 479 dbar (Ctd data) |
| 129 | 27 |
49°19.15 123°48.06 |
23-Feb-07 05:31 |
Rosette to 341 dbar (Ctd data) |
| 130 | GE01 |
49°15.06 123°44.99 |
23-Feb-07 06:34 |
Rosette to 6 dbar (Ctd data to 396 dbar) |
| 131 | GE01 |
49°15.01 123°45.02 |
23-Feb-07 06:57 |
Bongo to 100 m |
| 132 | GE01 |
49°15.02 123°45.00 |
23-Feb-07 07:09 |
Bongo to 395 m |
| 133 | 39 |
49°09.82 123°33.01 |
23-Feb-07 08:26 |
Rosette to 368 dbar (Ctd data) |
Download data for the whole cruise
Zooplankton data
Trace Metal Data
For the Trace Metal data contact Kyle Simpson
Thermosalinographs (TSG) data (text files)
Surface and Loop data in text format
Profiles of T, S, Sigma-t, DO, and their anomalies
1000-dbar profiles and anomalies with respect to the 1956-1991 averages
| Temperature | Temperature Anomaly |
| Salinity | Salinity Anomaly |
| Sigma-t | Sigma-t Anomaly |
| Dissolved Oxygen | No anomaly profile available |
Documents
- Cruise plan (PDF file)
- Cruise report (PDF file)
- Data processing notes (2007-01-proc.pdf)
- Data Quality flags
- Nutrients duplicates and precision (2007-01_NUT.pdf)
- DMS duplicates (2007-01_DMS.pdf)
- DMS Report (2007-01_DMS_report.pdf)
- Dissolved Inorganic Carbon analysis (2007-01_DIC.pdf)
- Alkalinity analysis (2007-01_ALK.pdf)
- Carpenter, J.H. 1965. The Chesapeake Bay Institute Technique for the Winkler Dissolved Oxygen Method. Limmnol. & Oceanogr., 10: 141-143.
- Barwell-Clarke, J. and F. Whitney. 1996. Institute of Ocean Sciences Nutrient Methods and Analysis. Canadian Technical Report of Hydrography and Ocean Sciences, No. 182, 43 pp.
