Cruise 2013-01, 5 - 19 February 2013 Cruise description Cruise personnel Map of cruise track and stations Table of sampling done Download cruise data Profiles Documents

Cruise description

This cruise went quite well despite being only 14 days and in February. All stations were visited and all casts performed, although some stations had to be done on the return leg.
There were no special rosette casts performed during this cruise, only the regular "Deep" and "DMS" casts for DFO, as well as 3 "UBC" casts - P4, P12 and P26.
Some trace metal sampling was done for DFO using the Go-flo bottles as well as the Teflon pump.
Some sensors (two C-star transmissometers) were added to our CTD for the University of Berkeley, California. Their group also collected water for particulate inorganic carbon (PIC).
Finally two Iridium floats were deployed at Station Papa for UW/Applied Physics Lab, and two weather data drifting buoys were deployed for Environment Canada, two Carbon Explorer drifters were deployed at Station Papa for the University of Berkeley, and three MetOcean drifters were deployed for DFO/Institute of Ocean Sciences.
The regular sampling done during this cruise was completed using a CTD, a Rosette, and a Bongo. Two bongo casts were done at each major station - one cast to 250 m and one cast to 1200 m.
For further details see 2013-01_cruise_report.pdf in the Documents section.

Cruise personnel

Chief Scientist: Marie Robert Institute of Ocean Sciences (DFO)

Michael Arychuk (Institute of Ocean Sciences-DFO)
Mark Belton (volunteer)
Emily Braithwaite (volunteer)
Glenn Cooper (Institute of Ocean Sciences-DFO)
Tamara Fraser (Institute of Ocean Sciences-DFO)
Sam Kheirandish (University of British Columbia)
Hugh Maclean (Institute of Ocean Sciences-DFO)
Kyle Simpson (Institute of Ocean Sciences-DFO)
Jill Sutton (University of Berkeley)
Todd Wood (University of Berkeley)

Captain: Victor Gronmyr

Top of page

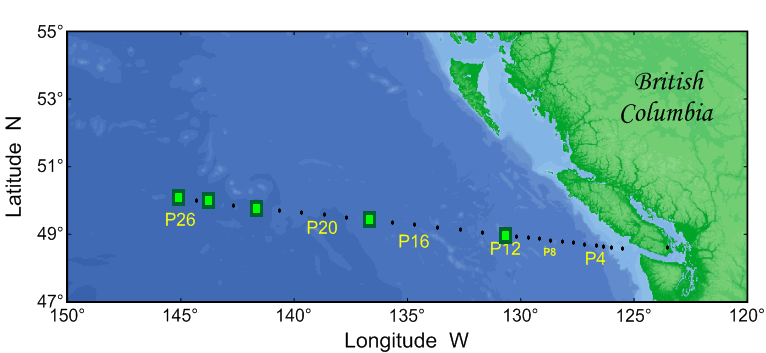

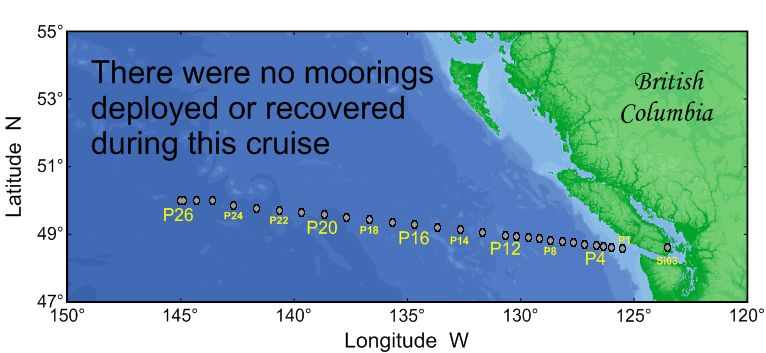

Map of cruise track and stations

Click on the cast types below to see at which stations the casts were done. To access data.

Top of page

Table of stations and sampling done

For HPLC data contact Angelica Peña
For ONAr data contact Steve Emerson
DIC, Alk and pH data are being analyzed and will be available shortly. In the meantime contact Lisa Miller.
For the Trace Metal data contact Kyle Simpson
For a list of data available in the CTD files please refer to
2013-01-ctd-channels.txt
For a list of data available in the Rosette files please refer to 2013-01-che-channels.txt

Event	Station	Position	Date (UTC) Time (UTC)	Sampling
1	SI03	48°35.60 123°30.02	06-Feb-13 03:32	Rosette to 215 dbar (Ctd data)
2	JF1	48°16.13 123°29.94	06-Feb-13 09:34	Loop sample for salinity, chlorophyll, nutrients
3	JF2	48°17.96 123°59.59	06-Feb-13 11:35	Loop sample for salinity, chlorophyll, nutrients
4	JF3	48°26.93 124°29.75	06-Feb-13 13:49	Loop sample for salinity, chlorophyll, nutrients
5	JF4	48°32.25 124°59.60	06-Feb-13 16:03	Loop sample for salinity, chlorophyll, nutrients
6	P2	48°36.15 125°59.92	06-Feb-13 21:33	Rosette (DMS cast) to 99 dbar (Ctd data)
7	P2	48°35.99 125°59.89	06-Feb-13 22:34	Rosette (Deep cast) to 104 dbar (Ctd data)
8	P3	48°37.51 126°19.75	07-Feb-13 00:52	Rosette to 30 dbar (Ctd data to 788 dbar)
9	P5	48°41.55 127°09.94	07-Feb-13 06:40	Rosette to 31 dbar (Ctd data to 2007 dbar)
10	P6	48°44.57 127°39.99	07-Feb-13 11:42	Rosette to 30 dbar (Ctd data to 2009 dbar)
11	P7	48°46.73 128°10.33	07-Feb-13 15:59	Rosette to 31 dbar (Ctd data to 2008 dbar)
12	P8	48°48.97 128°39.90	07-Feb-13 20:22	Bongo to 250 m
13	P8	48°48.90 128°39.86	07-Feb-13 20:52	Rosette to 2003 dbar (Ctd data)
14	P9	48°51.39 129°09.80	08-Feb-13 01:14	Rosette to 49 dbar (Ctd data to 2036 dbar)
15	P10	48°53.58 129°39.98	08-Feb-13 05:02	Rosette to 49 dbar (Ctd data to 2006 dbar)
16	P11	48°56.00 130°10.02	08-Feb-13 08:53	Rosette to 51 dbar (Ctd data to 2005 dbar)
17	P12	48°58.26 130°39.86	08-Feb-13 12:44	Rosette (UBC cast) to 2002 dbar (Ctd data)
18	P12	48°58.26 130°39.82	08-Feb-13 14:30	Trace metal: pumping to 40 m.
19	P12	48°58.25 130°39.87	08-Feb-13 15:55	Trace metal: Go-flo to 1000 m
20	P12	48°58.26 130°39.80	08-Feb-13 17:15	Trace metal: Go-flo to 200 m
21	P12	48°58.25 130°40.21	08-Feb-13 18:18	Bongo to 250 m
22	P12	48°58.20 130°40.06	08-Feb-13 18:46	Rosette (Deep cast) to 3257 dbar (Ctd data)
23	P12	48°58.18 130°39.93	08-Feb-13 22:17	Rosette (DMS cast) to 299 dbar (Ctd data)
24	P12	48°58.28 130°39.96	08-Feb-13 22:59	Deploy MetOcean float 62
25	P13	49°02.60 131°39.86	09-Feb-13 04:04	Rosette to 49 dbar (Ctd data to 2008 dbar)
26	P14	49°07.45 132°39.96	09-Feb-13 10:12	Rosette to 48 dbar (Ctd data to 2009 dbar)
27	P15	49°12.06 133°39.95	09-Feb-13 15:54	Rosette to 802 dbar (Ctd data to 2007 dbar)
28	P16	49°17.04 134°40.01	09-Feb-13 22:10	Rosette (DMS cast) to 299 dbar (Ctd data)
29	P16	49°16.88 134°39.97	09-Feb-13 23:07	Bongo to 250 m
30	P16	49°16.88 134°40.03	09-Feb-13 23:28	Rosette (Deep cast) to 3679 dbar (Ctd data)
31	P16	49°17.00 134°39.85	10-Feb-13 03:40	Trace metal: pumping to 40 m
32	P16	49°16.99 134°39.86	10-Feb-13 04:04	Trace metal: Go-flo to 1000 m
33	P16	49°16.99 134°39.86	10-Feb-13 05:01	Trace metal: Go-flo to 200 m
34	P18	49°26.05 136°40.00	10-Feb-13 16:25	Rosette to 2004 dbar (Ctd data)
35	P18	49°26.16 136°40.22	10-Feb-13 17:41	Deploy MetOcean float 60
36	P19	49°30.02 137°40.10	10-Feb-13 22:08	Rosette to 49 dbar (Ctd data to 2009 dbar)
37	P21	49°38.06 139°39.99	11-Feb-13 08:14	Rosette to 52 dbar (Ctd data)
38	P22	49°42.58 140°39.43	11-Feb-13 14:06	Rosette to 51 dbar (Ctd data to 2008 dbar)
39	P23	49°46.21 141°40.06	11-Feb-13 21:24	Rosette (Calibration cast) to 2001 dbar (Ctd data)
40	P23	49°46.18 141°40.10	11-Feb-13 22:51	Deploy Environment Canada Drifter 109420
41	P26	49°59.99 145°00.02	12-Feb-13 19:27	Rosette (DMS cast) to 300 dbar (Ctd data)
42	P26	50°00.01 144°59.99	12-Feb-13 20:31	Rosette (Deep cast) to 4315 dbar (Ctd data)
43	P26	50°00.00 145°00.00	12-Feb-13 21:08	Trace metal: Small boat surface sampling
44	~P26	50°04.08 145°04.99	13-Feb-13 00:26	Deploy MetOcean float 61
45	~P26	50°04.05 145°05.28	13-Feb-13 00:33	Deploy University of California - Berkeley CE015
46	~P26	50°04.12 145°05.43	13-Feb-13 00:47	Deploy University of California - Berkeley CE014
47	~P26	50°04.06 145°05.08	13-Feb-13 01:34	Deploy UW float 8390
48	~P26	50°04.05 145°05.13	13-Feb-13 01:36	Deploy UW float 6881
49	P26	50°00.01 144°59.98	13-Feb-13 02:54	Trace metal: pumping to 40 m
50	P26	50°00.01 144°59.97	13-Feb-13 04:48	Trace metal: Go-flo to 1000 m
51	P26	50°00.15 144°59.98	13-Feb-13 05:30	Trace metal: Go-flo to 200 m
52	P26	50°00.02 144°59.99	13-Feb-13 06:29	Rosette (UBC cast) to 1999 dbar (Ctd data)
53	P26	49°59.67 145°00.50	13-Feb-13 08:43	Bongo to 250 m
54	PA-006	50°02.24 144°55.81	13-Feb-13 09:41	Rosette (ONAr cast) to 9 dbar (Ctd data to 502 dbar)
55	PA-006	50°02.26 144°55.81	13-Feb-13 10:15	Bongo to 1000 m
56	PA-006	50°02.29 144°55.81	13-Feb-13 12:05	Rosette (ONAr cast) to 4 dbar (Ctd data to 22 dbar)
57	P35	50°00.14 144°18.18	13-Feb-13 14:59	Rosette to 48 dbar (Ctd data to 2006 dbar)
57B		49°59.95 143°46.81	13-Feb-13 18:12	Deploy Environment Canada Drifter 109405
58	P25	50°00.00 143°36.23	13-Feb-13 18:57	Rosette to 2006 dbar (Ctd data)
59	P24	49°50.21 142°40.05	14-Feb-13 00:05	Rosette to 51 dbar (Ctd data to 2007 dbar)
60	P20	49°34.06 138°39.99	14-Feb-13 18:59	Bongo to 250 m
61	P20	49°34.05 138°39.99	14-Feb-13 19:30	Rosette (DMS cast) to 298 dbar (Ctd data)
62	P20	49°34.05 138°39.99	14-Feb-13 20:39	Rosette (Deep cast) to 4020 dbar (Ctd data)
63	P20	49°34.12 138°39.97	15-Feb-13 00:28	Trace metal: pumping to 40 m
64	P20	49°34.12 138°39.95	15-Feb-13 02:16	Trace metal: Go-flo to 1000 m
65	P20	49°34.16 138°40.03	15-Feb-13 03:20	Trace metal: Go-flo to 200 m
66	P17	49°21.10 135°40.03	15-Feb-13 21:39	Rosette to 51 dbar (Ctd data to 1010 dbar)
67	Loop 67	49°16.11 134°33.32	16-Feb-13 02:33	Loop sample for salinity and chlorophyll
68	Loop 68	49°04.16 132°01.99	16-Feb-13 12:14	Loop sample for salinity and chlorophyll
69	Loop 69	48°57.19 129°50.05	16-Feb-13 21:21	Loop sample for salinity and chlorophyll
70	Loop 70	48°57.35 128°21.23	17-Feb-13 03:14	Loop sample for salinity and chlorophyll
71	P4	48°39.02 126°39.99	17-Feb-13 12:02	Rosette (UBC cast) to 1250 dbar (Ctd data)
72	P4	48°39.01 126°39.98	17-Feb-13 13:29	Bongo to 250 m
73	P4	48°38.34 126°40.52	17-Feb-13 13:54	Trace metal: pumping to 40 m
74	P4	48°39.25 126°40.39	17-Feb-13 15:51	Rosette (Deep cast) to 1319 dbar (Ctd data)
75	P4	48°39.25 126°40.39	17-Feb-13 18:03	Rosette (DMS cast) to 300 dbar (Ctd data)
76	Loop 76	48°36.46 126°01.56	17-Feb-13 21:10	Loop sample for salinity and chlorophyll
77	Loop 77	48°34.79 125°35.12	17-Feb-13 22:53	Loop sample for salinity and chlorophyll
78	P1	48°34.61 125°30.02	17-Feb-13 23:30	Rosette to 103 dbar (Ctd data)

Top of page

Download data for the whole cruise

CTD data

List of CTD stations
Channels in CTD files

Chemistry (Rosette) data

List of Rosette casts
Channels in Rosette files

Zooplankton data

Trace Metal Data
For the Trace Metal data contact Kyle Simpson

Drifter data

MetOcean float 62
MetOcean float 60
Environment Canada Drifter 109420
MetOcean float 61
University of California - Berkeley CE015
University of California - Berkeley CE014
UW float 8390
UW float 6881
Environment Canada Drifter 109405

Thermosalinographs (TSG) data (text files)

Surface and Loop data in text format

Top of page

Profiles of T, S, Sigma-t, DO, and their anomalies

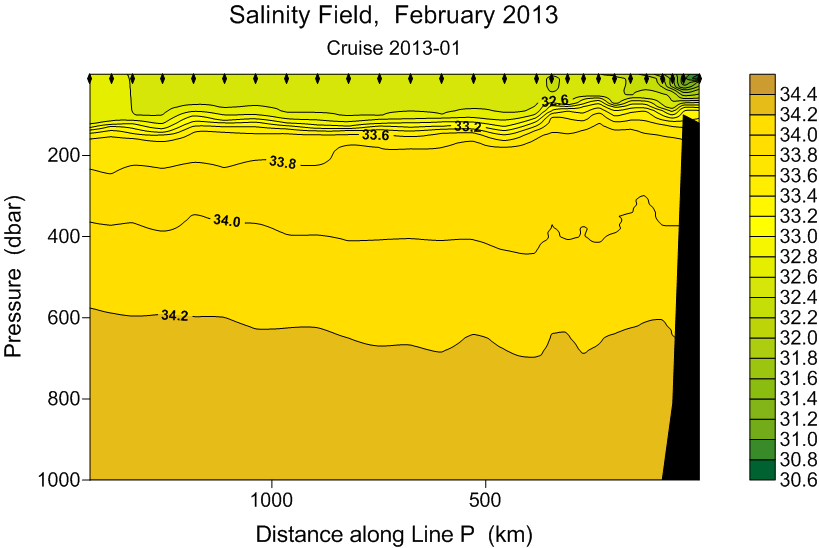

1000-dbar profiles and anomalies with respect to the 1956-1991 averages

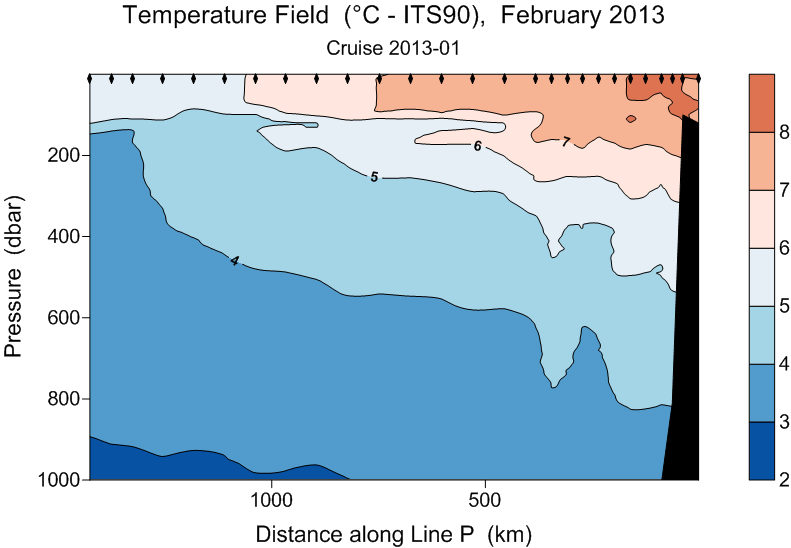

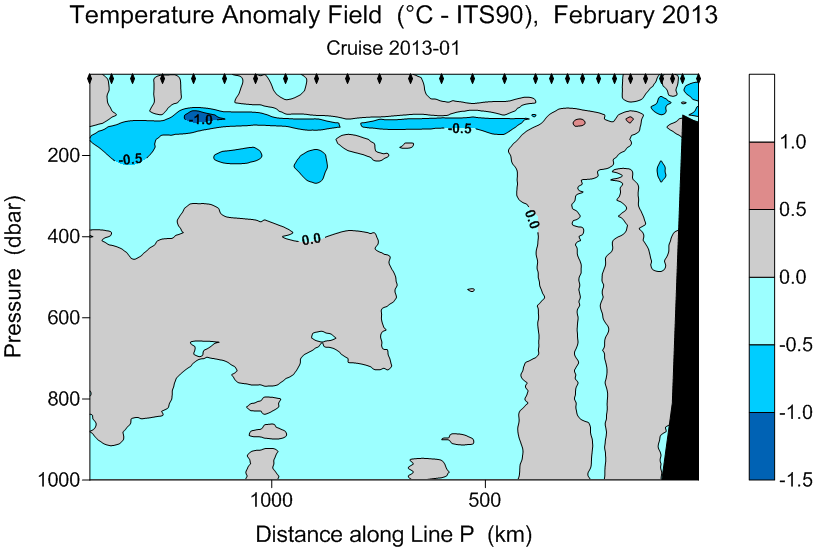

Temperature	Temperature Anomaly

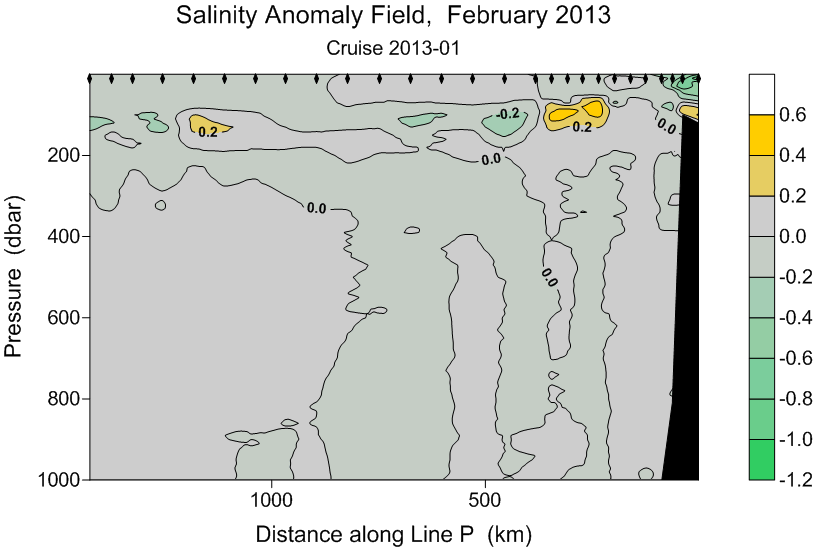

Salinity	Salinity Anomaly

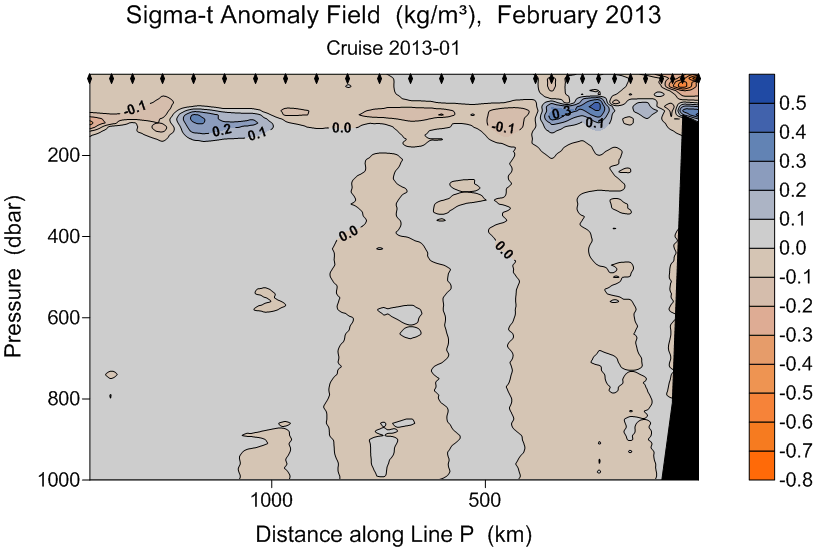

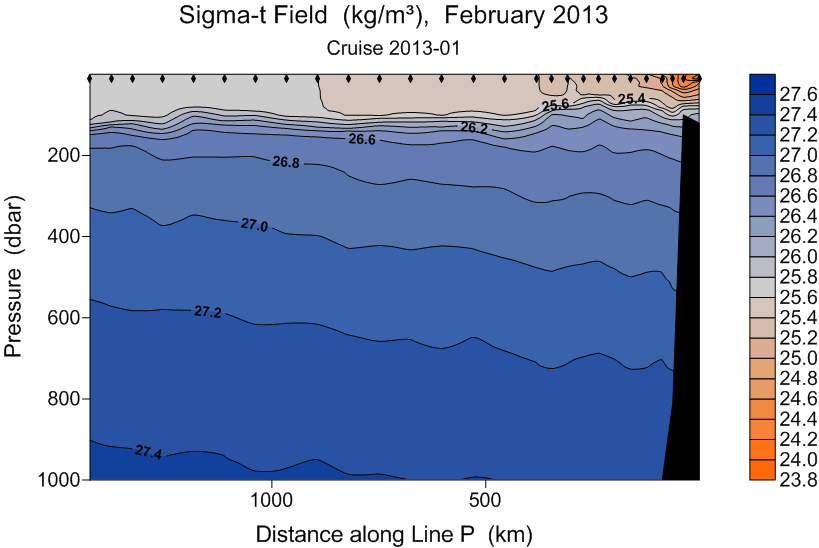

Sigma-t	Sigma-t Anomaly

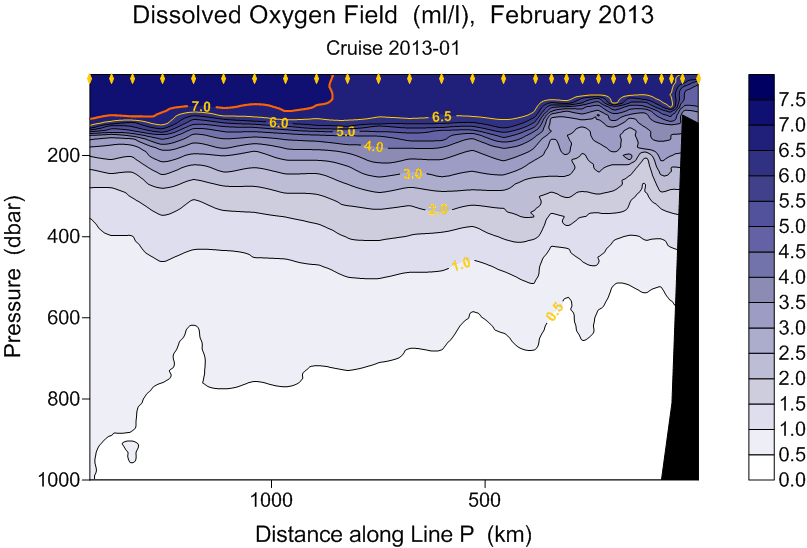

Dissolved Oxygen (ml/l)	No anomaly profile available

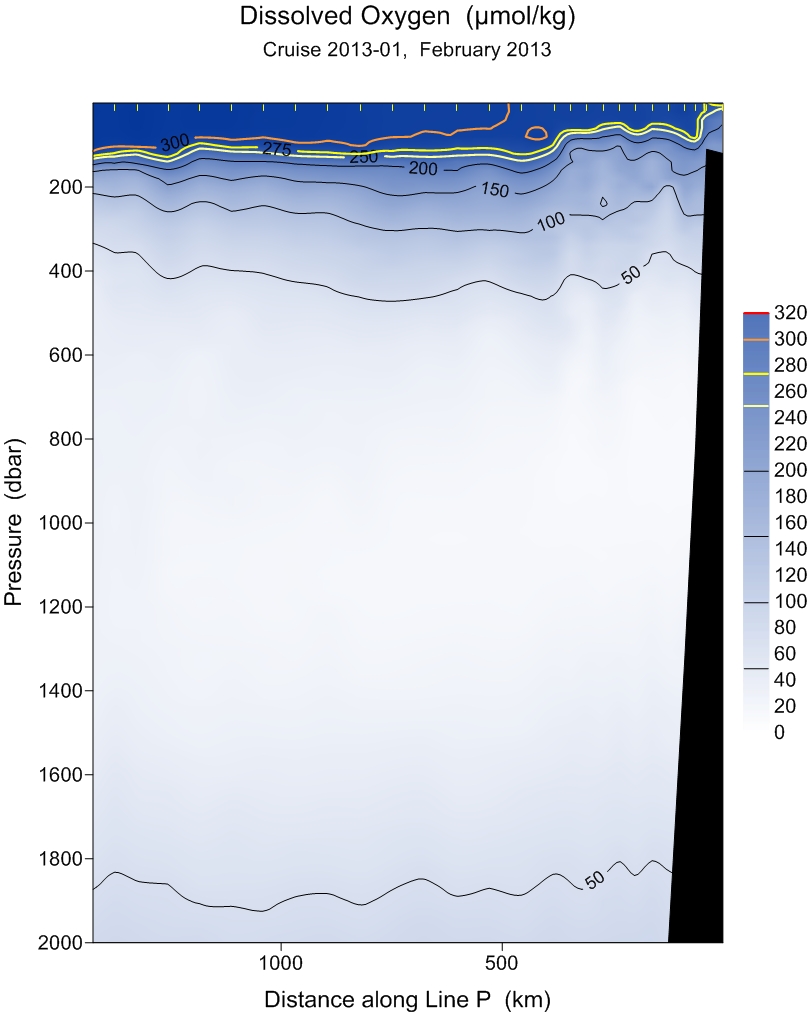

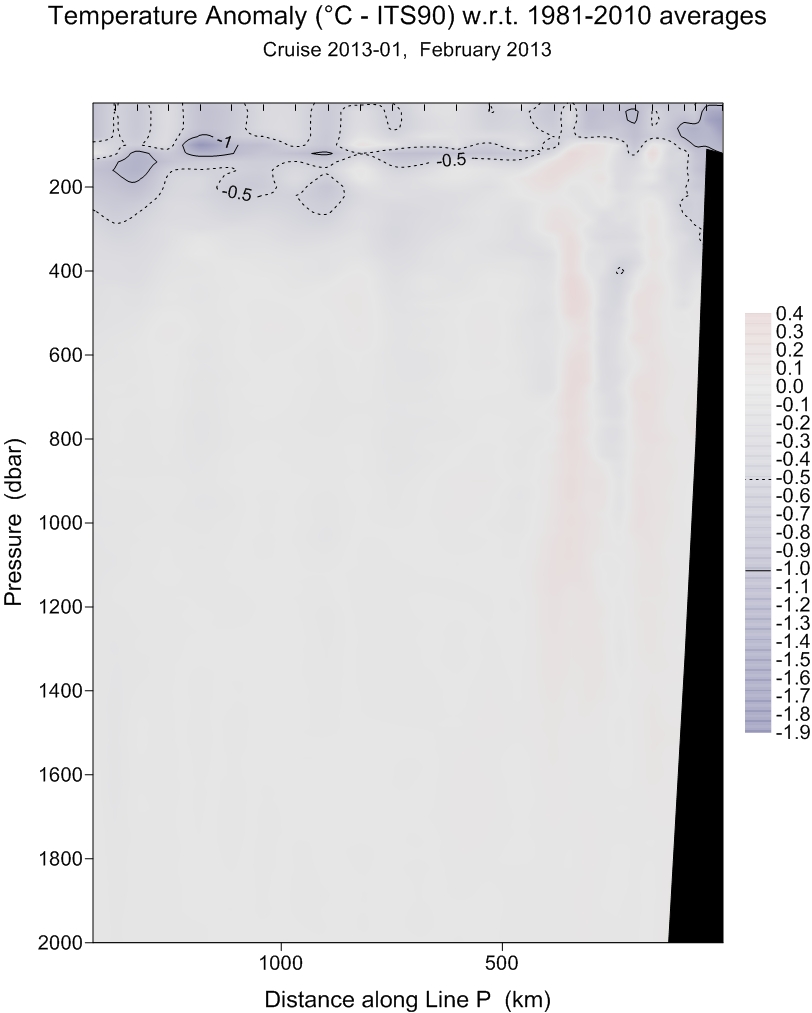

2000-dbar profiles and anomalies with respect to the 1981-2010 averages for Temperature, Salinity and Sigma-t,
and with respect to the 2001-2010 averages for Dissolved Oxygen

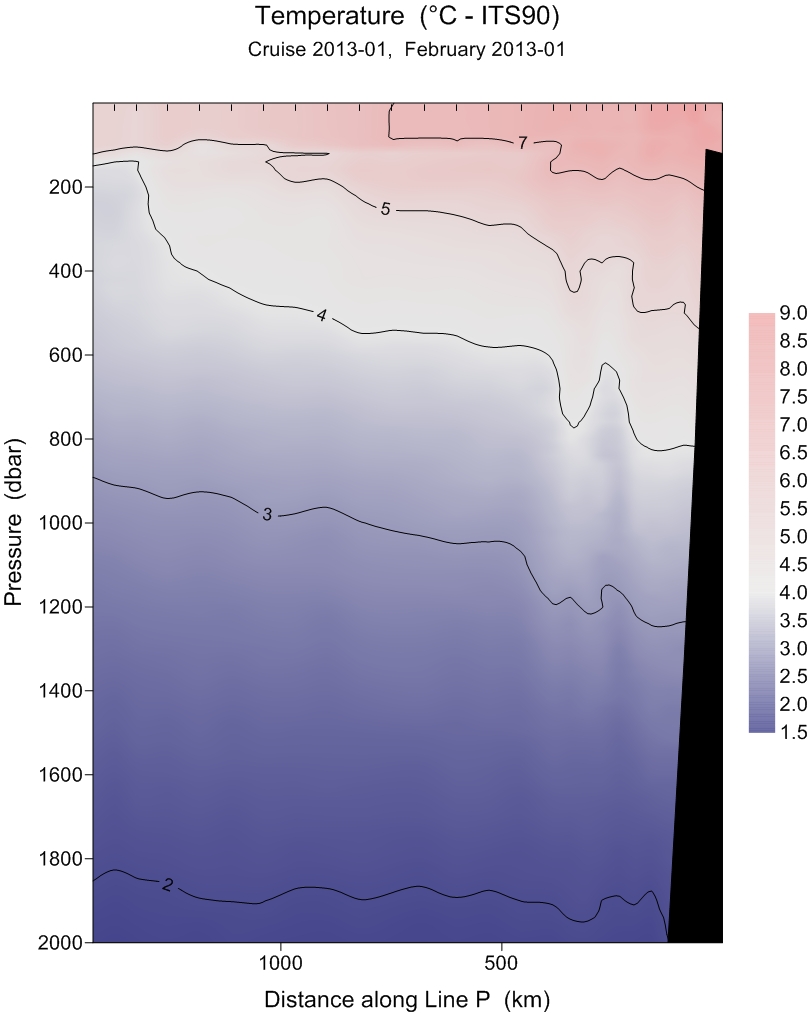

Temperature	Temperature Anomaly

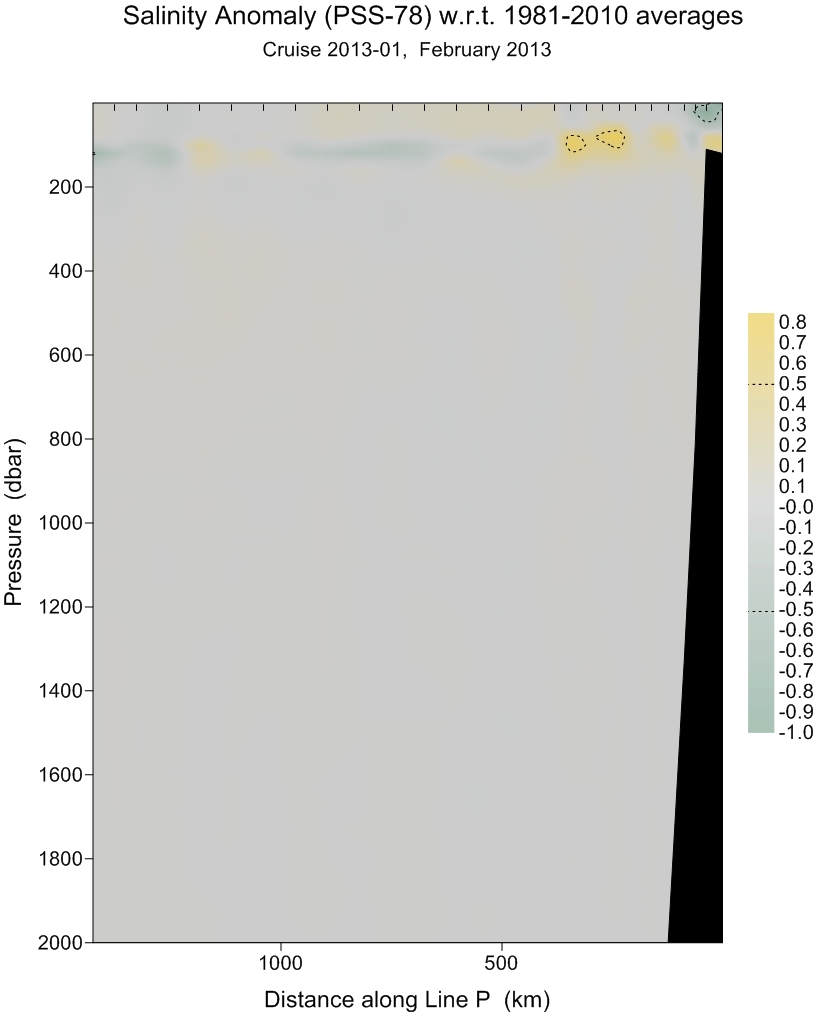

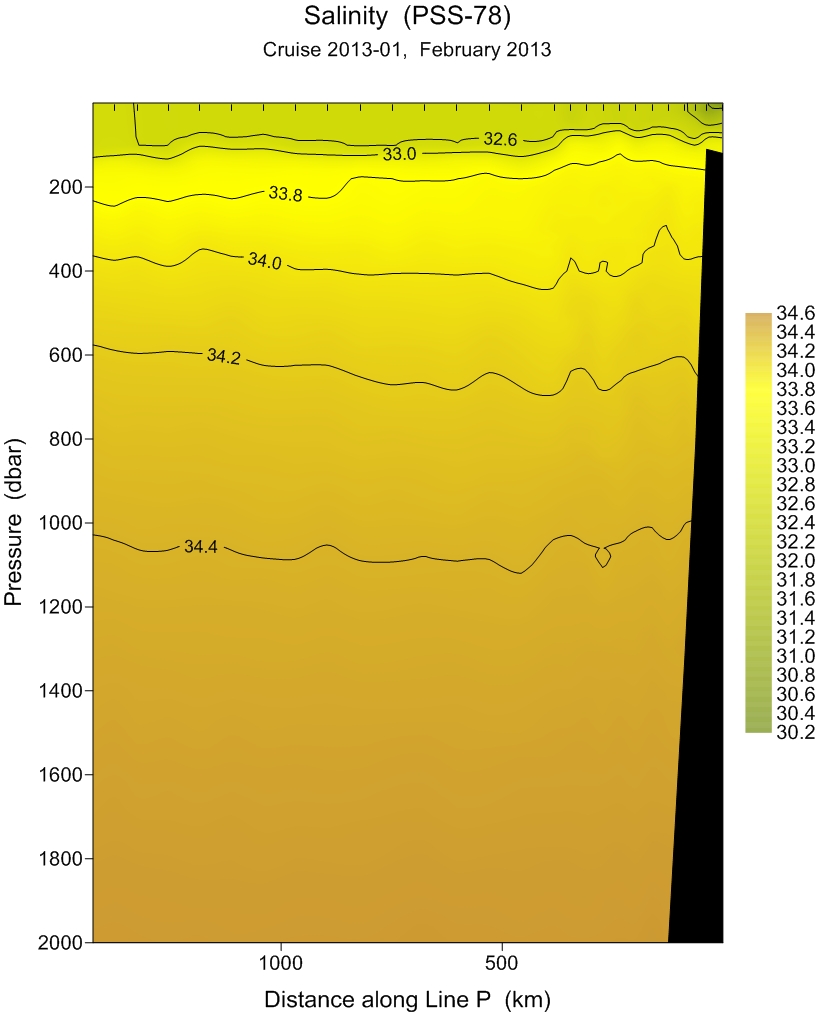

Salinity	Salinity Anomaly

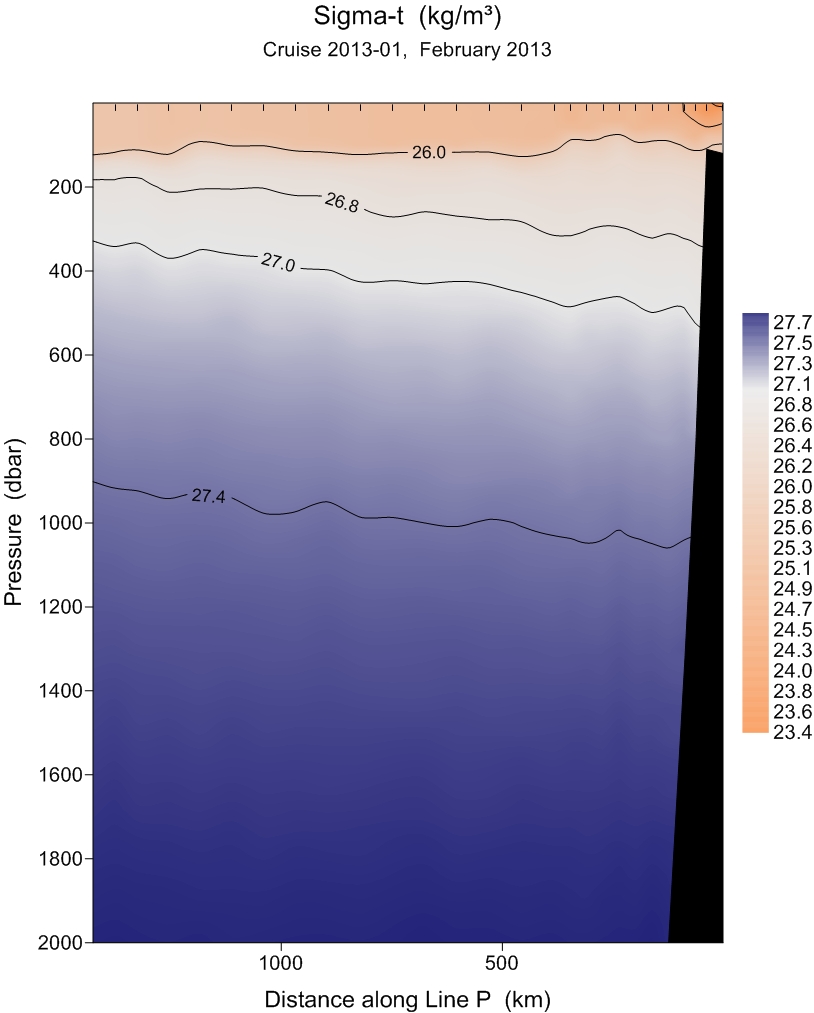

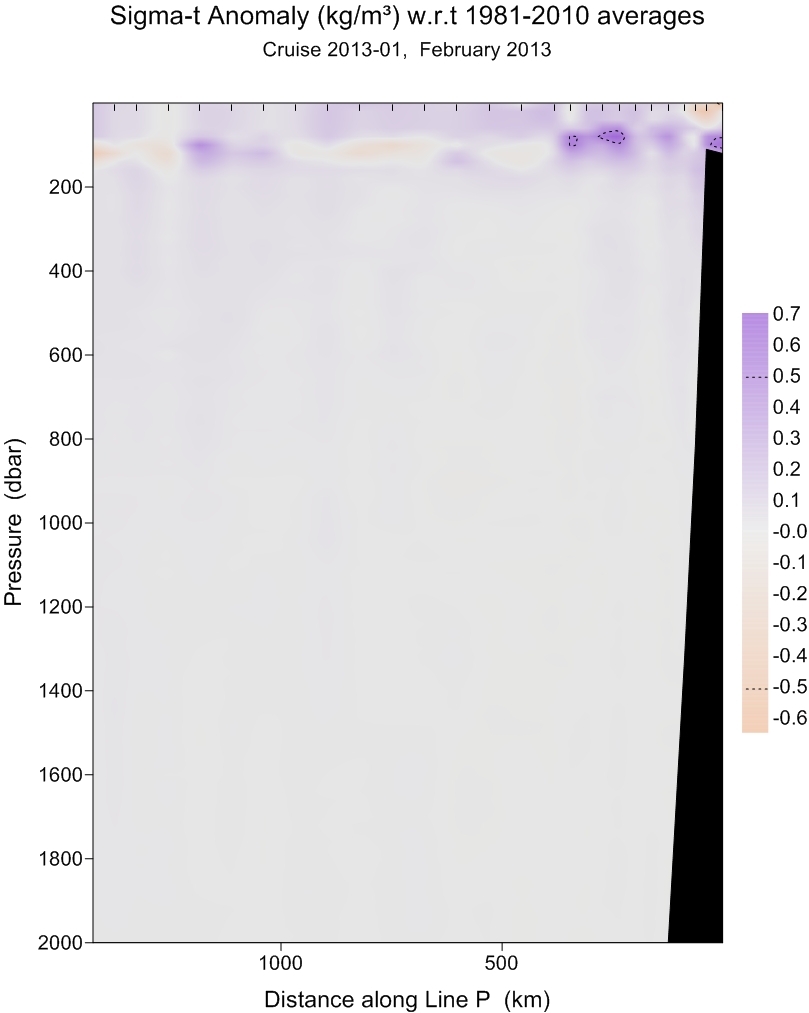

Sigma-t	Sigma-t Anomaly

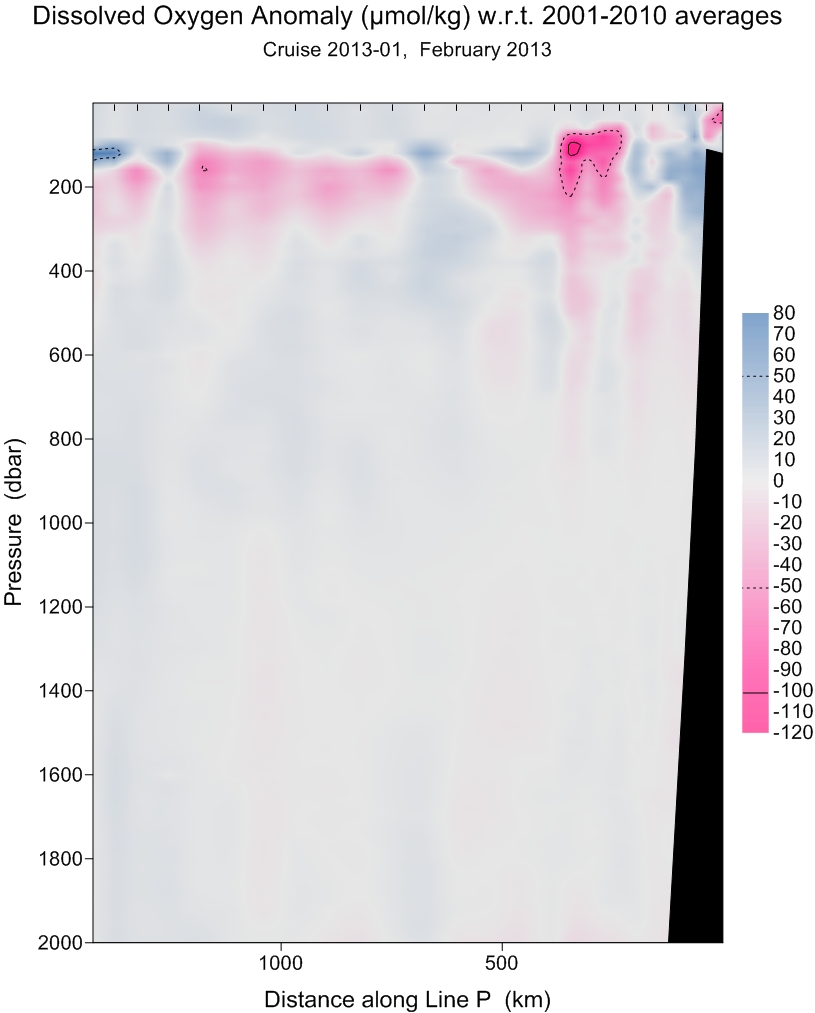

Dissolved Oxygen (µmol/kg)	Dissolved Oxygen Anomaly(µmol/kg)

Documents

Cruise plan (PDF file)
Cruise report (PDF file)
Data processing report (2013-01-proc.pdf)
Chlorophyll and Phaeo-pigment duplicates (2013-01_CHL.pdf)
Dissolved Oxygen duplicates (2013-01_OXY.pdf)
Nutrients precision and duplicates (2013-01_NUT.pdf)
DMS duplicates (2013-01_DMS.pdf)
DMS Report (2013-01_DMS_Report.pdf)
Salinity duplicates (2013-01_SAL.pdf)
Data Quality flags
Transmissivity Calculation
Sea-Bird Note 64-2_Jun2012
Carpenter, J.H. 1965. The Chesapeake Bay Institute Technique for the Winkler Dissolved Oxygen Method. Limmnol. & Oceanogr., 10: 141-143.
Culberson, C.H. 1991. Dissolved oxygen. In WOCE Operations Manual. Volume 3: The Observational Program. Section 3.1: WOCE Hydrographic Program. Part 3.1.3: WHP Operations and Methods. WHP Office Report WHPO 91-1 / WOCE Report No. 68/91.
Holm-Hansen, O., Lorenzen, C.J., Holmes, R.W., and Strickland J.D.H. 1965. Fluorometric Determination of Chlorophyll. J.du Cons. Intl. Pour l’Epl. De la Mer. 30:3-15.
Barwell-Clarke, J. and F. Whitney. 1996. Institute of Ocean Sciences Nutrient Methods and Analysis. Canadian Technical Report of Hydrography and Ocean Sciences, No. 182, 43 pp.
