Cruise 2009-09, 6 - 23 June 2009

Cruise description
Cruise personnel
Map of cruise track and stations
Table of sampling done
Download cruise data

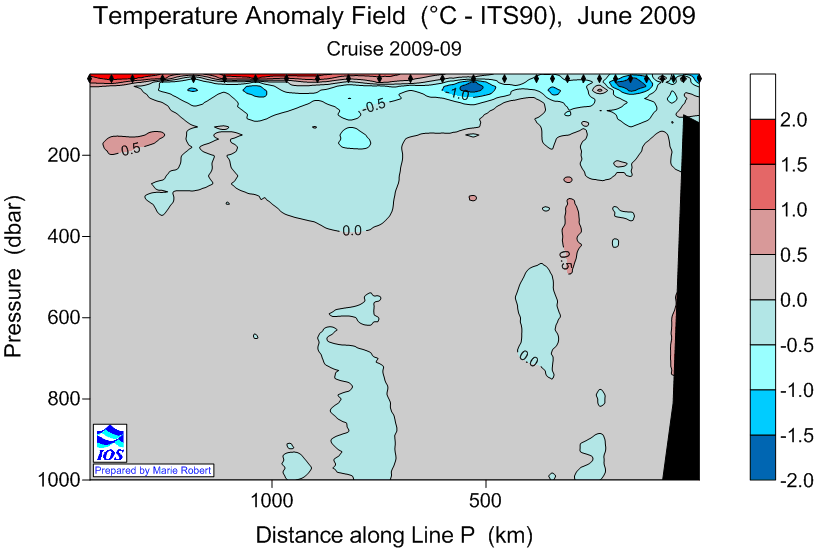

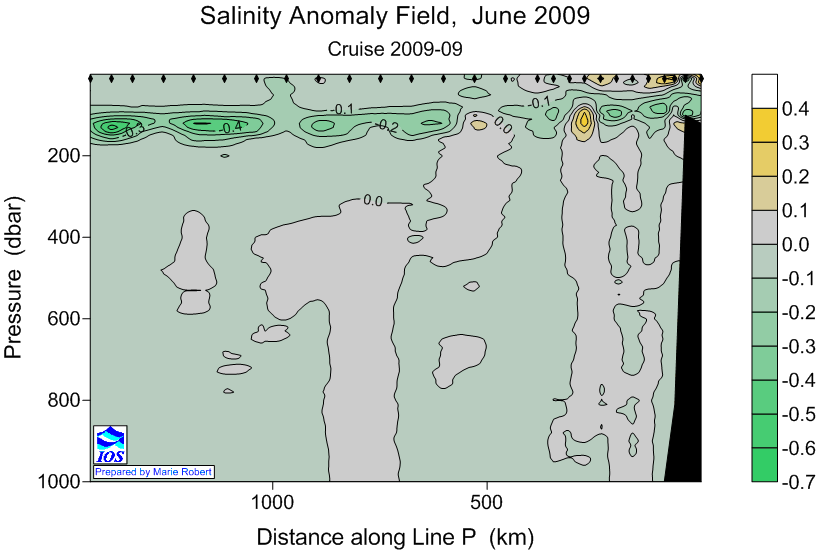

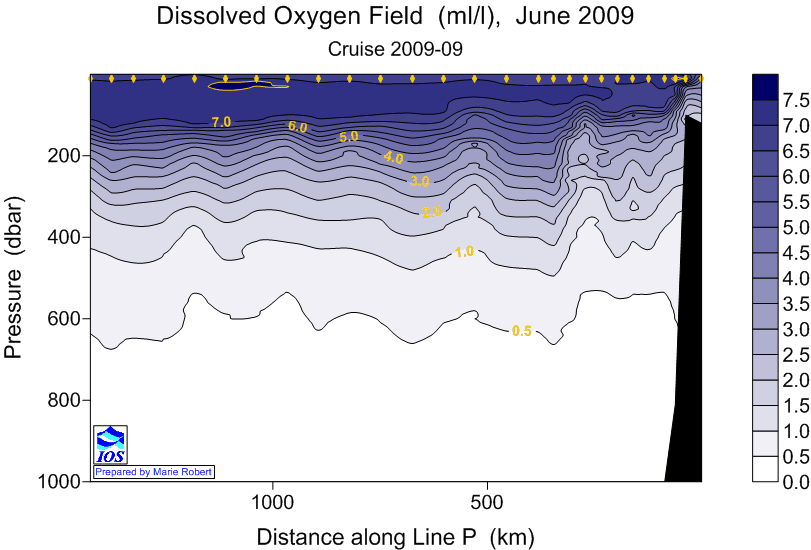

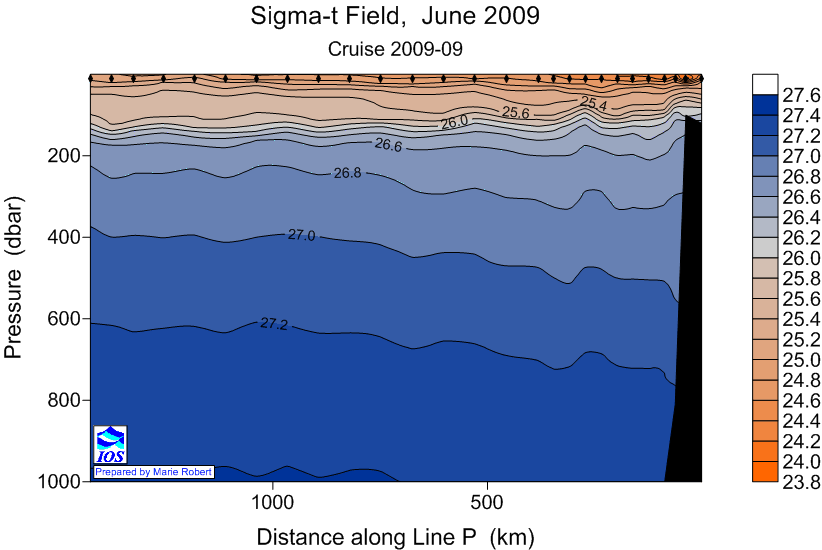

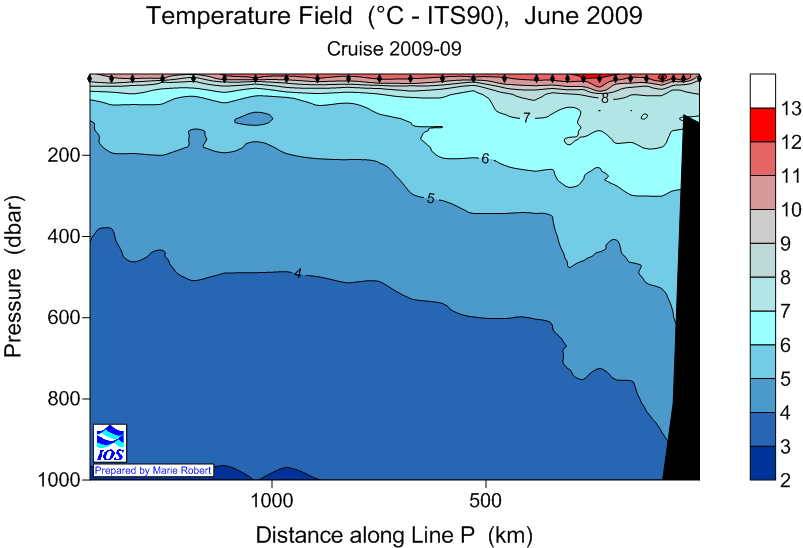

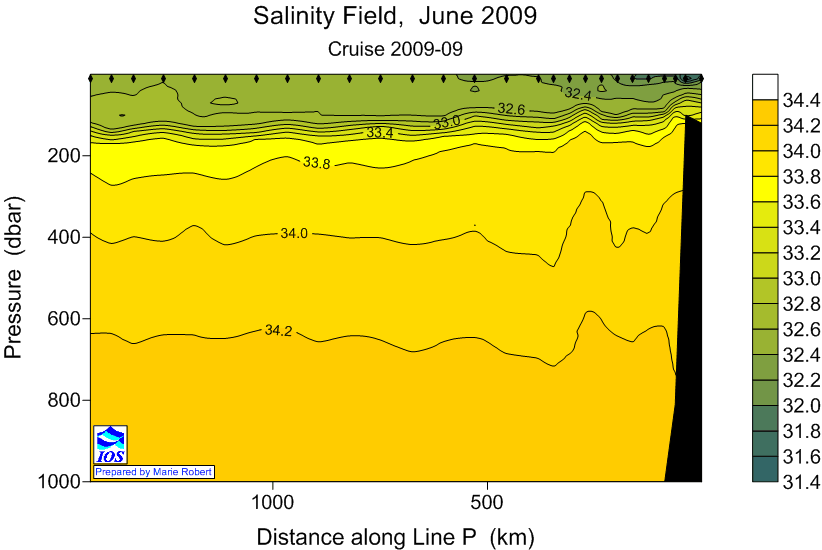

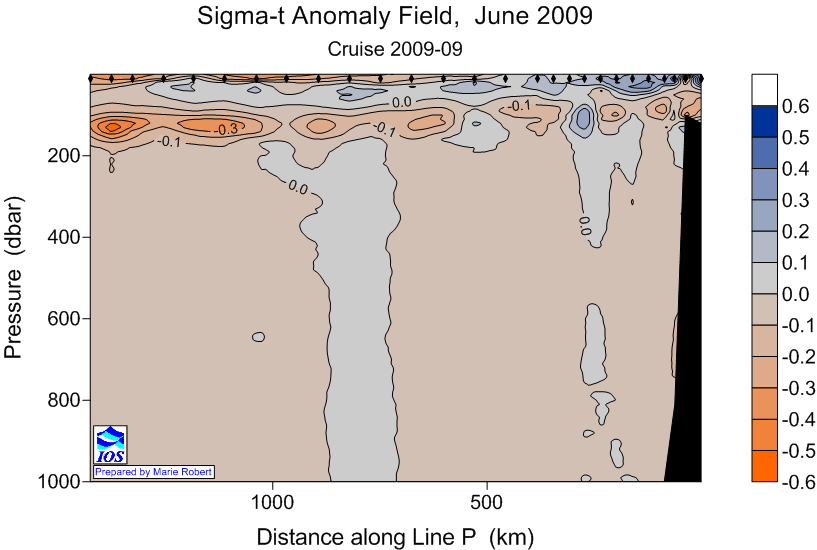

Profiles
Documents

Cruise description

This cruise was very successful. The June cruise is traditionally the "mooring cruise". In this case one mooring was deployed, and another one was first recovered then redeployed, all around Station Papa. A University of Washington Seaglider was also recovered and replaced by another one. The "733" (Rigid Hull Inflatable boat) was used in many instances for surface sampling. Thanks to the very clement weather, all stations were visited. The sampling done during this cruise was performed using a CTD, a Rosette, some Go-flos, and a Bongo. For further details see the Cruise_report.pdf in the Documents section.

Cruise personnel

Chief Scientist: Marie Robert    Institute of Ocean Sciences   (DFO)
  • Elke Allers (University of Arizona)
  • Michael Arychuk (Institute of Ocean Sciences-DFO)
  • Marjolaine Blais (Université Laval)
  • Seth Bushinsky (University of Washington)
  • Michael Craig (NOAA/PMEL)
  • Damian Grundle (University of Victoria)
  • Keith Johnson (Institute of Ocean Sciences-DFO)
  • Robert Kamphaus (NOAA/PMEL)
  • Martine Lizotte (Université Laval)
  • Hugh Maclean (Institute of Ocean Sciences-DFO)
  • Josiane Mélançon (Université Laval)
  • Kendra Mitchell (University of British Columbia)
  • Ken Morgan (Canadian Wildlife Service)
  • Wendy Richardson (Institute of Ocean Sciences-DFO)
  • Nes Sutherland (Institute of Ocean Sciences-Contractor)
  • Oliver Wurl (Institute of Ocean Sciences-Postdoc fellow)
  • Jian Yang (China/Université Laval)
  • Doug Yelland (Institute of Ocean Sciences-DFO)

Top of page

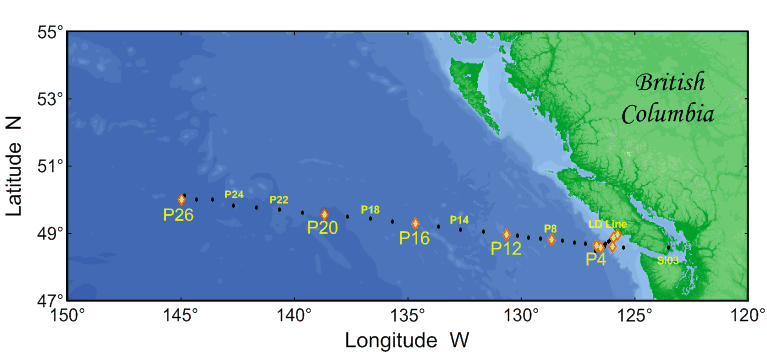

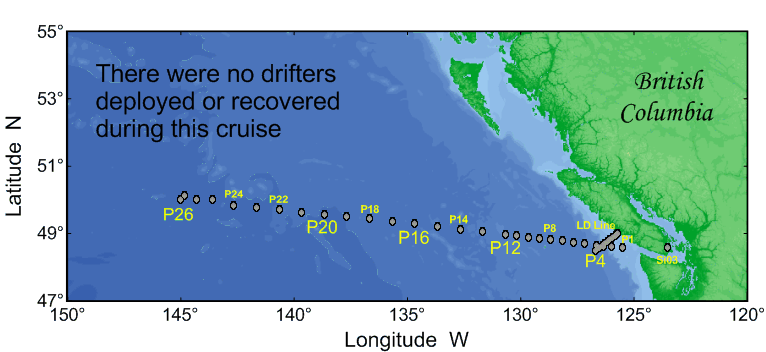

Map of cruise track and stations

Map of Line-P stations for 2007-15

Click on the cast types below to see at which stations the casts were done. To access data.

Top of page

Table of stations and sampling done

Event Station Position Date (UTC)
Time (UTC)		 Sampling
1 SI03 48°35.44
123°30.03 		07-Jun-09
01:04 		Rosette to 215 dbar
(Ctd data)
2 P1 48°34.52
125°30.02 		07-Jun-09
14:34 		Rosette to 5 dbar
(Ctd data to 104 dbar)
3 P2 48°36.07
126°00.04 		07-Jun-09
19:01 		Rosette (DMS and Deep cast) to 107 dbar
(Ctd data)
4 P2 48°36.11
126°00.25 		07-Jun-09
19:50 		Bongo tow to 107 m
5 P3 48°37.02
126°17.15 		07-Jun-09
21:18 		Surface sampling by small boat
6 P3 48°37.20
126°19.55 		07-Jun-09
21:53 		Rosette to 601 dbar
(Ctd data to 745 dbar)
7 P4 48°38.99
126°39.84 		08-Jun-09
00:09 		Rosette (Light cast) to 601 dbar
(Ctd data to 602 dbar)
8 P4 48°38.97
126°39.98 		08-Jun-09
01:08 		Surface sampling by small boat
9 P4 48°38.97
126°39.96 		08-Jun-09
01:20 		Bongo tow to 250 m
10 P4 48°38.97
126°39.98 		08-Jun-09
02:00 		Rosette (DMS and ONAr cast) to 199 dbar
(Ctd data)
11 P4 48°38.97
126°39.86 		08-Jun-09
03:50 		Rosette (Deep cast) to 1322 dbar
(Ctd data)
12 P4 48°39.06
126°40.06 		08-Jun-09
06:00 		Trace metal pumping.
13 P4 48°38.95
126°39.78 		08-Jun-09
07:43 		Rosette (UBC Deep cast) to 1300 dbar
(Ctd data)
15 P4 48°39.01
126°39.94 		08-Jun-09
10:09 		Rosette (UBC Shallow cast) to 1000 dbar
(Ctd data)
16 P5 48°41.56
127°10.01 		08-Jun-09
13:10 		Rosette to 5 dbar
(Ctd data to 2006 dbar)
17 P6 48°44.53
127°39.92 		08-Jun-09
16:35 		Rosette to 5 dbar
(Ctd data to 2006 dbar)
18 P7 48°46.59
128°09.98 		08-Jun-09
20:19 		Rosette to 6 dbar
(Ctd data to 2015 dbar)
19 P7 48°46.60
128°09.97 		08-Jun-09
20:29 		Surface sampling by small boat
20 P8 48°48.99
128°39.97 		08-Jun-09
23:38 		Rosette to 2002 dbar
(Ctd data)
21 P8 48°49.01
128°39.93 		09-Jun-09
01:14 		Bongo tow to 250 m
22 P9 48°51.39
129°10.03 		09-Jun-09
03:34 		Rosette to 5 dbar
(Ctd data to 2005 dbar)
23 P10 48°53.49
129°40.05 		09-Jun-09
07:07 		Rosette to 4 dbar
(Ctd data to 2007 dbar)
24 P11 48°56.07
130°10.07 		09-Jun-09
10:13 		Rosette to 5 dbar
(Ctd data to 2005 dbar)
25 P12 48°58.15
130°40.22 		09-Jun-09
13:23 		Rosette (Deep cast) to 3220 dbar
(Ctd data)
26 P12 48°58.11
130°40.20 		09-Jun-09
14:40 		Surface sampling by small boat
27 P12 48°58.29
130°40.00 		09-Jun-09
16:23 		Trace Metal sampling to 10 m using Go-flos.
28 P12 48°58.20
130°40.03 		09-Jun-09
16:47 		Trace metal pumping to 40 m.
29 P12 48°58.12
130°39.79 		09-Jun-09
17:40 		Trace Metal sampling to 150 m using Go-flos.
30 P12 48°58.28
130°39.79 		09-Jun-09
18:15 		Ctd to 101 dbar
31 P12 48°58.29
130°39.85 		09-Jun-09
18:22 		Rosette (DMS, Light, ONAr cast) to 601 dbar
(Ctd data)
32 P12 48°58.24
130°39.83 		09-Jun-09
19:20 		Surface sampling by small boat
33 P12 48°58.23
130°39.84 		09-Jun-09
19:52 		Bongo to 250 m
34 P12 48°58.16
130°39.96 		09-Jun-09
20:17 		Rosette (UBC Deep cast) to 2001 dbar
(Ctd data)
35 P12 48°58.18
130°39.94 		09-Jun-09
22:11 		Rosette (UBC Shallow cast) to 1001 dbar
(Ctd data)
36 P13 49°02.60
131°39.97 		10-Jun-09
02:59 		Rosette to 199 dbar
(Ctd data to 2006 dbar)
37 P14 49°07.47
132°40.10 		10-Jun-09
08:06 		Rosette to 5 dbar
(Ctd data to 2005 dbar)
38 P15 49°11.98
133°39.97 		10-Jun-09
13:08 		Rosette to 4 dbar
(Ctd data to 2005 dbar)
39 P16 49°16.97
134°40.12 		10-Jun-09
18:15 		Rosette (DMS cast) to 200 dbar
(Ctd data)
40 P16 49°16.93
134°40.00 		10-Jun-09
19:13 		Rosette (Light and ONAr cast) to 600 dbar
(Ctd data)
41 P16 49°16.97
134°39.96 		10-Jun-09
19:39 		Surface sampling by small boat
42 P16 49°16.96
134°39.98 		10-Jun-09
21:04 		Ctd to 1598 dbar
43 P16 49°16.95
134°40.06 		10-Jun-09
21:47 		Rosette (Deep cast) to 3685 dbar
(Ctd data)
44 P16 49°17.01
134°40.02 		11-Jun-09
00:40 		Trace metal pumping and go-flos to 150 m
45 P16 49°16.98
134°39.92 		11-Jun-09
03:00 		Rosette (UBC Deep cast) to 2001 dbar
(Ctd data)
46 P16 49°16.98
134°39.87 		11-Jun-09
04:13 		Bongo to 250 m
47 P16 49°17.02
134°39.98 		11-Jun-09
04:46 		Rosette (UBC Shallow cast) to 1000 dbar
(Ctd data)
48 P17 49°21.00
135°39.93 		11-Jun-09
09:22 		Rosette to 4 dbar
(Ctd data to 2022 dbar)
49 P18 49°26.08
136°39.97 		11-Jun-09
14:27 		Rosette to 5 dbar
(Ctd data to 2005 dbar)
52 P19 49°30.00
137°40.03 		11-Jun-09
19:35 		Rosette to 4 dbar
(Ctd data to 2006 dbar)
54 P20 49°33.74
138°37.59 		12-Jun-09
00:38 		Surface sampling by small boat
55 P20 49°34.02
138°39.99 		12-Jun-09
01:05 		Ctd to 99 dbar
56 P20 49°34.02
138°39.98 		12-Jun-09
01:12 		Rosette (DMS, Light & ONAr cast) to 600 dbar
(Ctd data)
57 P20 49°34.04
138°39.98 		12-Jun-09
02:30 		Bongo to 250 m
58 P20 49°34.01
138°39.91 		12-Jun-09
02:54 		Rosette (Deep cast) to 4025 dbar
(Ctd data)
59 P20 49°33.95
138°39.95 		12-Jun-09
06:15 		Trace metal pumping to 45 m
60 P20 49°33.98
138°39.91 		12-Jun-09
07:30 		Trace Metal sampling to 150 m using Go-flos
61 P20 49°34.07
138°39.81 		12-Jun-09
08:06 		Rosette (UBC Deep cast) to 2000 dbar
(Ctd data)
62 P20 49°34.06
138°39.88 		12-Jun-09
10:46 		Rosette (UBC Deep cast) to 1001 dbar
(Ctd data)
63 PA-003 50°07.5
144°49.4 		13-Jun-09

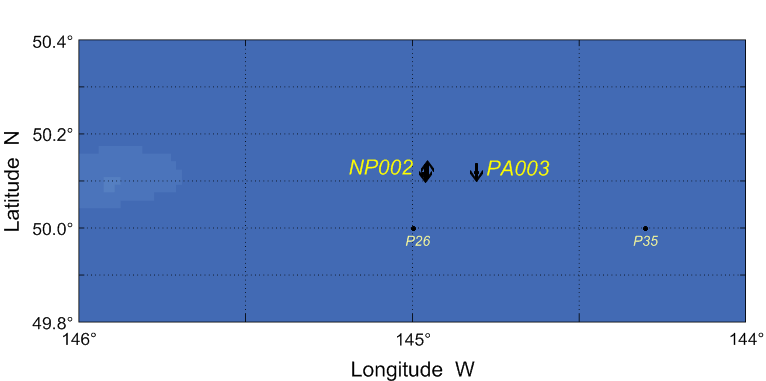

18:18 		Deploy PMEL/NOAA PA-003 mooring
64 NP-002 50°07.0
144°58.7 		13-Jun-09
21:54 		Recover the ADCP mooring - NP002
(NOAA/PMEL, UW/APL, U Victoria)
65 PA-003 50°07.96
144°50.12 		14-Jun-09
05:04 		Rosette cast to 29 dbar
(Ctd data to 501 dbar)
66 P26 49°59.94
145°00.22 		14-Jun-09
07:04 		Trace metal pumping to 40 m
67 P26 50°00.05
144°59.95 		14-Jun-09
08:41 		Trace Metal sampling to 150 m using Go-flos
68 P26 50°00.02
145°00.06 		14-Jun-09
09:56 		Bongo to 1000 m
69 P26 49°59.95
145°00.03 		14-Jun-09
10:35 		Bongo to 250 m
70 P26 50°00.00
145°00.31 		14-Jun-09
11:20 		Trace Metal sampling to 800 m using Go-flos
71 P26 50°00.10
144°59.94 		14-Jun-09
12:19 		Rosette (Deep cast) to 4320 dbar
(Ctd data)
72 P26 50°00.00
145°00.26 		14-Jun-09
15:08 		Surface sampling by small boat and
Glider deployment
73 P26 49°59.92
145°00.18 		14-Jun-09
16:49 		Ctd to 601 dbar
74 P26 50°00.01
145°00.03 		14-Jun-09
17:38 		Rosette (Light & ONAr cast) to 601 dbar
(Ctd data)
75 P26 49°59.93
145°00.04 		14-Jun-09
20:15 		Rosette (DMS & ONAr cast) to 201 dbar
(Ctd data)
76 P26 49°59.96
144°59.98 		14-Jun-09
22:17 		Rosette (Deep ONAr cast) to 4001 dbar
(Ctd data)
77 P26 50°00.00
145°00.01 		15-Jun-09
00:55 		Trace metal pumping
79 P26 49°59.99
145°00.01 		15-Jun-09
02:31 		Rosette (ONAr & O17 cast) to 100 dbar
(Ctd data)
80 P26 49°59.97
145°00.06 		15-Jun-09
05:02 		Rosette (ONAr & O17 cast) to 29 dbar
(Ctd data)
81 P26 50°00.00
145°00.08 		15-Jun-09
07:06 		Rosette (UBC Deep cast) to 1999 dbar
(Ctd data)
82 P26 50°00.03
144°59.99 		15-Jun-09
08:53 		Rosette (UBC Shallow cast) to 1000 dbar
(Ctd data)
84 NP-003 50°07.1
144°57.9 		15-Jun-09
17:40 		Deploy the ADCP mooring - NP-003
(NOAA/PMEL, UW/APL, U Victoria)
85 P26 50°00.03
145°00.04 		15-Jun-09
22:17 		Trace metal pumping to 10 m
86 P26 50°00.02
144°59.96 		15-Jun-09
22:30 		Surface sampling by small boat
87 P35 50°00.03
144°18.20 		16-Jun-09
02:25 		Rosette to 5 dbar
(Ctd data to 2004 dbar)
88 P25 50°00.04
143°36.31 		16-Jun-09
06:33 		Rosette to 5 dbar
(Ctd data to 2005 dbar)
89 P24 49°50.21
142°40.09 		16-Jun-09
11:39 		Rosette to 4 dbar
(Ctd data to 2005 dbar)
90 P23 49°46.01
141°40.01 		16-Jun-09
16:38 		Rosette to 6 dbar
(Ctd data to 2009 dbar)
91 P22 49°42.02
140°40.02 		16-Jun-09
21:36 		Rosette (Calibration cast) to 2004 dbar
(Ctd data to 2004 dbar)
92 P22 49°42.00
140°40.00 		16-Jun-09
23:15 		Surface sampling by small boat
93 P21 49°37.96
139°39.97 		17-Jun-09
04:01 		Rosette to 6 dbar
(Ctd data to 2005 dbar)
94 P19 49°30.05
137°39.78 		17-Jun-09
17:45 		Rosette to 4 dbar
(Ctd data to 2009 dbar)
95   49°30.05
137°39.79 		17-Jun-09
17:47 		Surface sampling by small boat.
96   49°27.3
137°13.5 		17-Jun-09
21:39 		Surface sampling by small boat
97   49°27.3
137°13.5 		17-Jun-09
22:35 		Trace metal pumping
98   48°44.2
129°37.1 		18-Jun-09
15:32 		Surface sampling by small boat
99 LD11 48°28.77
126°43.00 		20-Jun-09
10:37 		Rosette to 10 dbar
(Ctd data to 1591 dbar)
100 LD10 48°32.28
126°36.55 		20-Jun-09
12:11 		Ctd to 1468 dbar
101 LD9 48°35.66
126°30.03 		20-Jun-09
13:36 		Ctd to 1054 dbar
102 LD9 48°35.69
126°29.91 		20-Jun-09
14:33 		Bongo to 250 m
103 LD8 48°39.13
126°23.41 		20-Jun-09
15:35 		Ctd to 769 dbar
104 LD7 48°42.60
126°16.76 		20-Jun-09
16:42 		Ctd to 436 dbar
105 LD6 48°46.13
126°10.17 		20-Jun-09
17:38 		Ctd to 128 dbar
106 LD5 48°49.71
126°03.55 		20-Jun-09
18:40 		Ctd to 83 dbar
107 LD4 48°53.19
125°56.91 		20-Jun-09
19:44 		Rosette to 10 dbar
(Ctd data to 55 dbar)
108 LD4 48°53.20
125°56.89 		20-Jun-09
19:59 		Bongo to 53 m
109 LD3 48°56.54
125°50.25 		20-Jun-09
20:51 		Ctd to 38 dbar
110 LD2 48°58.41
125°46.88 		20-Jun-09
21:31 		Rosette to 11 dbar
(Ctd data to 34 dbar)
111 LD2 48°58.39
125°46.86 		20-Jun-09
21:45 		Bongo to 33 m
112 LD1 49°00.07
125°43.81 		20-Jun-09
22:11 		Rosette to 10 dbar
(Ctd data to 27 dbar)

Top of page

Download data for the whole cruise

CTD data
List of CTD casts




Chemistry (Rosette) data
List of Rosette casts




Zooplankton data



Trace Metal Data
For Trace Metal data please contact Keith Johnson
For small boat samples please contact Oliver Wurl



Mooring data
To access mooring data, go to PMEL/NOAA PA003-PA004



Thermosalinographs (TSG) data (text files)



Surface and Loop data in text format

Top of page

Profiles of T, S, Sigma-t, DO, and their anomalies

1000-dbar profiles and anomalies with respect to the 1956-1991 averages

Documents

Top of page
